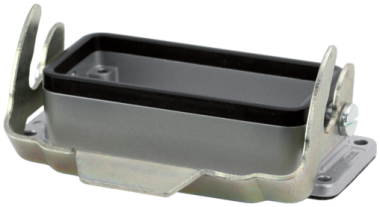

Murr B16 Bulkhead mounted housing, single locking, IP65

Product Overview

Heavy-duty connector housing (SKU: 70MH-GAFNL-B000000) designed for industrial automation and electrical distribution applications. This B16 bulkhead-mounted housing provides IP65 environmental protection with single locking lever mechanism, offering secure panel mounting for modular heavy-duty connector systems in demanding industrial environments.

Key Features

• B16 size bulkhead-mounted housing for panel installation
• IP65 protection rating when plugged and properly secured
• Single locking lever mechanism for secure connection
• Aluminum die-cast construction for durability and strength
• Powder-coated surface finish for corrosion resistance
• Minimum 500 mating cycles for reliable long-term use
• Longitudinal locking with M-bracket design
• Compatible with Modlink Heavy connector inserts

Technical Specifications

• Housing Type: Bulkhead-mounted (panel mount)
• Size: B16 format
• Protection Rating: IP65 (EN 60529) when inserted and tightened
• Material: Aluminum die-cast construction
• Surface Finish: Powder-coated
• Locking Mechanism: Single locking lever system
• Locking Material: Galvanized steel
• Gasket Material: NBR (Nitrile Butadiene Rubber)
• Operating Temperature: Standard industrial temperature range
• Mating Cycles: Minimum 500 cycles

Applications

• Industrial control panel connections
• Manufacturing equipment electrical interfaces
• Process control system installations
• Machine tool electrical connections
• Heavy-duty equipment requiring weatherproof connections
• Modular connector systems in harsh environments

Compliance & Standards

• IP65 protection rating per EN 60529
• Industrial grade construction for demanding environments
• Minimum 500 mating cycles for reliable operation
• Single locking mechanism for secure connections
• Technical data guaranteed when used with Murrelektronik components

Download existing graphical data for this product:

Product Datasheet
