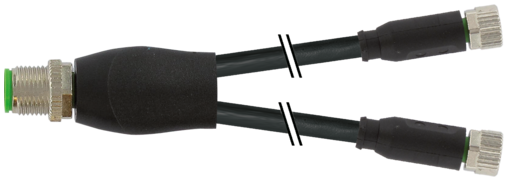

Murr Y-distributor, M12 male 0°/ M8 female 0°, A-coded, 1m

Product Overview

This M12 to M8 Y-distributor connection cable (SKU: 7000-40821-6300100) features one male M12 straight (0°) connector branching to multiple female M8 straight (0°) connectors, all with A-coding for reliable signal distribution between different connector sizes in industrial automation applications. The 1-meter cable with black PUR jacket provides compact connectivity for mixed-connector distribution networks.

Connector Configuration:

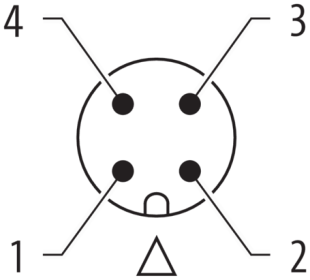

• Input connector: M12, 4/3-pole, 0° straight, A-coded (male)

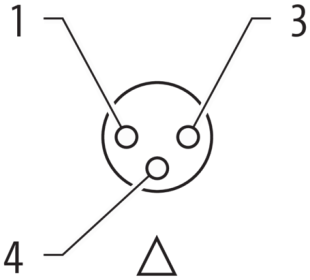

• Output connectors: Multiple M8, 3-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm (input), M8 x 1mm (outputs), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

Y-Distributor Design:

• Configuration: One M12 input to multiple M8 outputs
• Topology: Point-to-multipoint distribution with size conversion
• Signal splitting: Parallel connection distribution to smaller connectors
• Network expansion: Connects M12 systems to multiple M8 devices
• Installation efficiency: Single M12 cable run to multiple M8 devices

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.25 mm²
• Color: Black
• Length: 1 meter
• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for distribution applications

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for industrial automation environments requiring signal distribution from one M12 source to multiple M8 devices. Ideal for connecting M12 control systems to multiple M8 sensors or actuators, reducing installation complexity by eliminating the need for multiple separate cable runs. Perfect for compact sensor networks and distributed control applications where size conversion and signal splitting are needed.
