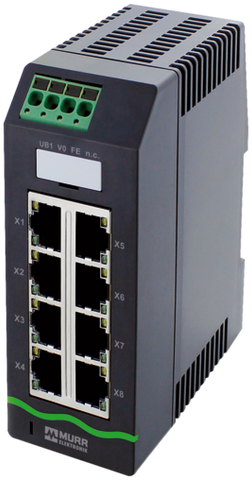

Murr Xelity 8TX Unmanaged switch, 8 port, 100Mbit

Product Overview

The Murrelektronik Xelity 8TX is an 8-port unmanaged Ethernet switch designed for industrial control cabinet applications. This compact, DIN-rail mountable switch delivers reliable 10/100 Mbit/s networking performance with plug-and-play simplicity. Featuring push-in spring clamp terminals and IP20 protection, the Xelity 8TX provides cost-effective networking solutions for industrial automation systems with PROFINET protocol prioritization capability and serves as an economical alternative to managed PROFINET switches.

Key Features

• 8-port unmanaged Ethernet switch with RJ45 connections
• 10/100 Mbit/s full duplex data transmission capability
• DIN-rail mountable design (TH35 per EN 60715 standard)
• Push-in spring clamp power terminals for easy installation
• IP20 protection rating suitable for control cabinet environments
• Wide operating voltage range (9.5-31.5V)
• PROFINET protocol prioritization (IEEE 802.1p QoS support)
• LED indicators for power and port status monitoring
• Compact black plastic housing (105×41.6×85.1 mm)
• UL listed for worldwide use

Technical Specifications

• Model: Xelity 8TX Unmanaged Switch 8 Port 100Mbit
• Article Number: 58812
• Port Configuration: 8x RJ45 Ethernet ports
• Switch Type: Unmanaged Switch
• Data Transmission Rate: 10/100 Mbit/s
• Protection Rating: IP20
• EAN: 4048879798808
• Weight: 0.133 kg
• Country of Origin: Germany

Connection Specifications

• Ethernet Connections: 8x RJ45 ports
• Power Supply Connection: Push-in spring clamp terminals
• Wire Capacity: 0.2-2.5 mm² (0.25-1.5 mm²)
• Operating Voltage: 9.5-31.5V
• Duplex Mode: Full duplex operation
• Auto-negotiation: Yes (Autocrossing/Autonegotiation)
• Mounting Method: DIN-rail mountable TH35 (EN 60715)

Applications

• Industrial control cabinet networking installations
• Factory automation system connectivity
• Machine control network infrastructure
• PROFINET-based automation systems
• Medium-scale Ethernet networking applications
• Process control and monitoring systems
• IP camera and surveillance network deployments

Standards and Compliance

• Mounting Standards: DIN-rail TH35 (EN 60715) compatible
• Protection Standards: IP20 environmental protection rating
• Network Standards: IEEE 802.1p QoS for PROFINET prioritization
• Quality Standards: German-designed and manufactured
• Certifications: UL listed for worldwide use
• Temperature Standards: Wide operating range (-25°C to +60°C)

Benefits

• Unmanaged operation provides plug-and-play simplicity
• Push-in spring clamp terminals enable tool-free power connections
• Compact DIN-rail design saves valuable control cabinet space
• PROFINET protocol prioritization optimizes industrial communication
• Wide voltage range accommodates various industrial power supplies
• Cost-effective alternative to managed PROFINET switches
• German engineering ensures reliable performance in industrial environments

Physical Specifications

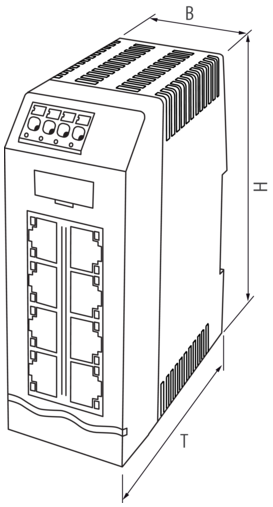

• Dimensions: 105×41.6×85.1 mm (H×W×D)
• Housing Material: Black plastic construction
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP20
• Communication Status: LED indicators for power and port activity
• Voltage Monitoring: Yes
• Overvoltage Protection: Yes
• Polarity Protection: Yes
