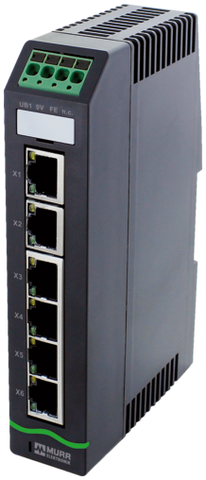

Murr Xelity 6TX Unmanaged switch, 6 port, 100Mbit

Product Overview

The Murrelektronik Xelity 6TX is a 6-port unmanaged Ethernet switch designed for industrial control cabinet applications. This compact, DIN-rail mountable switch delivers reliable 10/100 Mbit/s networking performance with plug-and-play simplicity. Featuring push-in spring clamp terminals and IP20 protection, the Xelity 6TX provides cost-effective networking solutions for industrial automation systems with PROFINET protocol prioritization capability.

Key Features

• 6-port unmanaged Ethernet switch with RJ45 connections
• 10/100 Mbit/s full duplex data transmission capability
• DIN-rail mountable design (TH35 per EN 60715 standard)
• Push-in spring clamp power terminals for easy installation
• IP20 protection rating suitable for control cabinet environments
• Wide operating voltage range (9.5-31.5V)
• PROFINET protocol prioritization (IEEE 802.1p QoS support)
• LED indicators for power and port status monitoring
• Compact black plastic housing (140×30×85.1 mm)

Technical Specifications

• Model: Xelity 6TX Unmanaged Switch 6 Port 100Mbit
• Article Number: 58811
• Port Configuration: 6x RJ45 Ethernet ports
• Switch Type: Unmanaged Switch
• Data Transmission Rate: 10/100 Mbit/s
• Protection Rating: IP20
• EAN: 4048879798396

Connection Specifications

• Ethernet Connections: 6x RJ45 ports
• Power Supply Connection: Push-in spring clamp terminals
• Wire Capacity: 0.2-2.5 mm² (0.25-1.5 mm²)
• Operating Voltage: 9.5-31.5V
• Duplex Mode: Full duplex operation
• Auto-negotiation: Yes (Autocrossing/Autonegotiation)
• Mounting Method: DIN-rail mountable TH35 (EN 60715)

Applications

• Industrial control cabinet networking installations
• Factory automation system connectivity
• Machine control network infrastructure
• PROFINET-based automation systems
• Small to medium-scale Ethernet networking
• Process control and monitoring applications

Standards and Compliance

• Mounting Standards: DIN-rail TH35 (EN 60715) compatible
• Protection Standards: IP20 environmental protection rating
• Network Standards: IEEE 802.1p QoS for PROFINET prioritization
• Quality Standards: German-designed and manufactured
• Certifications: UL listed for worldwide use

Benefits

• Unmanaged operation provides plug-and-play simplicity
• Push-in spring clamp terminals enable tool-free power connections
• Compact DIN-rail design saves valuable control cabinet space
• PROFINET protocol prioritization optimizes industrial communication
• Wide voltage range accommodates various industrial power supplies
• Cost-effective alternative to managed PROFINET switches

Physical Specifications

• Dimensions: 140×30×85.1 mm (H×W×D)
• Housing Material: Black plastic construction
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP20
• Communication Status: LED indicators for power and port activity
• Voltage Monitoring: Yes
