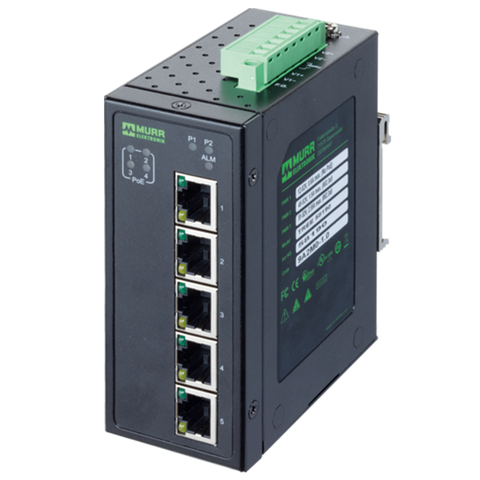

Murr Unmanaged gigabit switch, 5 port, 4 PoE ports

Product Overview

The Murrelektronik 5-Port Unmanaged Gigabit Switch is an industrial-grade networking solution featuring 4 PoE ports and designed for control cabinet installations. This IP20-rated metal switch provides high-speed Gigabit Ethernet connectivity with Power over Ethernet capability, making it ideal for powering and connecting IP cameras, wireless access points, and other PoE-enabled devices in industrial automation applications.

Key Features

• 5-port unmanaged Gigabit Ethernet switch with plug-and-play operation
• 4x PoE ports for powering connected devices (IEEE 802.3af/at compliant)
• 1x additional Gigabit Ethernet port for uplink connectivity
• IP20 protection rating suitable for control cabinet environments
• Metal housing construction for enhanced durability and heat dissipation
• 48V power supply compatibility for industrial applications
• LED indicators for Ethernet connection and data traffic monitoring
• DIN rail mounting capability for easy installation

Technical Specifications

• Model: 5 Port Unmanaged Gigabit Switch 4 PoE Ports IP20 Metal
• Article Number: 58190
• Switch Type: Unmanaged Gigabit Switch
• Port Configuration: 5 total ports (4 PoE + 1 standard Ethernet)
• PoE Ports: 4 ports supporting IEEE 802.3af/at
• Protection Rating: IP20
• Power Supply: 48V

Connection Specifications

• Ethernet Ports: 5x RJ45 Gigabit Ethernet connections
• PoE Capability: 4 ports with Power over Ethernet support
• Data Transmission Rate: 1000 Mbit/s (Gigabit)
• Duplex Mode: Full duplex operation
• Auto-negotiation: Yes
• Mounting Type: DIN rail mount
• Housing Material: Metal construction

Applications

• Industrial control cabinet networking installations
• IP camera systems requiring PoE power and data connectivity
• Wireless access point deployments in manufacturing environments
• VoIP phone systems in industrial settings
• Building automation systems with PoE devices
• Machine control networks requiring reliable Gigabit connectivity

Standards and Compliance

• PoE Standards: IEEE 802.3af/at compliant for device compatibility
• Protection Standards: IP20 environmental protection rating
• Quality Standards: Industrial-grade construction for reliable operation
• Certifications: CE, UKCA, cULus certified

Benefits

• Unmanaged operation provides simple plug-and-play deployment
• PoE capability eliminates need for separate power supplies for connected devices
• Metal housing ensures robust performance in industrial environments
• DIN rail mounting enables easy integration into control panels
• Gigabit speeds support bandwidth-intensive applications
• LED status indicators provide visual confirmation of network operation

Physical Specifications

• Housing Material: Metal construction for enhanced durability
• Protection Rating: IP20 for control cabinet environments
• Mounting Method: DIN rail mount
• Power Supply Voltage: 48V
• Communication Status: LED indicators for connection and data traffic
• Operating Mode: Full duplex with auto-negotiation

Download existing graphical data for this product:

• Product Specification Sheet
