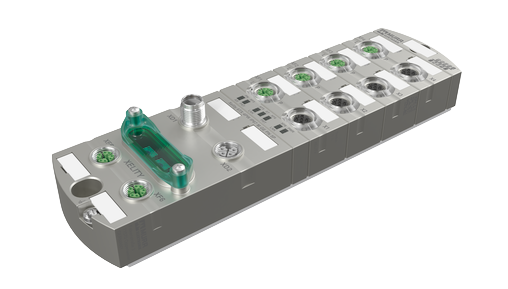

xThe Murr Xelity 6TX Managed Switch is a compact, industrial Ethernet solution designed for PROFINET-based automation networks. Delivering reliable data communication and advanced network management, it ensures stable performance in demanding production and machine environments.
Key Features:
- 6 x 10/100 TX Ethernet ports
- PROFINET-compliant managed switch
- Advanced network management and diagnostics
- Supports VLAN, QoS and redundancy functions
- Robust industrial design for harsh environments
- DIN rail mounting for control panel integration
- Optimised for machine building and automation systems
Specifications
x| Operating voltage type | DC |
| Operating voltage US DC | 24 V |
| Operating voltage range US DC | 18 V … 30 V |
| Current consumption max. | 183 mA |
| Power consumption max. | 3.8 W |
| Actuator current UA per output max. | 16,000 A |
| Number of HW interfaces (Industrial Ethernet) | 6 |
| Supported protocol | Ethernet, Profinet |
| Switch type | Managed |
| Switching procedure | Store & forward |
| Duplex | Full or half duplex |
| Auto-negotiation | Yes |
| Auto-crossover | Yes |
| Auto-polarity | Yes |
| Auto-Sensing | Yes |
| Package buffer | 2 Mbit |
| Topology | Ring, Net, Line, Star |
| Line topology cascading max. | 64 |
| Ring topology | RSTP |
| Profinet Conformance Class | B |
| Specification | V2.4 |
| Cycle time min. | 128 ms |
| MRP client | Yes |
| Webserver | HTTPS |
| Remote maintenance | Open VPN client |
| IP preset | 0.0.0.0/24 |
| QoS (IEEE 802.1p) | 8 queues |
| VLAN managed (IEEE 802.1Q) | Yes |
| VLANs max. (IEEE 802.1Q) | 64 |
| SNMP | v1 + v2c + v3 (default active) |
| Time synchronization | NTP client, Real-time clock |
| Configuration file management | HTTP, Webserver, FTP, TFTP |
| Number ports | 8 |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Protection class (EN IEC 61140) | III |
| Short-circuit protected | Yes |
| Inverse-polarity protection | Yes |
| Over voltage protection | Yes |
| Shock resistance (EN IEC 60068-2-27) | 30 g 11 ms |
| Vibration resistance (EN IEC 60068-2-6) | 3.5 mm (3 ... 60 Hz), 10 g (60 ... 150 Hz) |
| Material housing | Zinc die-casting |
| Colour housing | Silver |
| Net weight | 904 g |
| Height | 225 mm |
| Width | 63 mm |
| Depth | 37.4 mm |
| Mounting method | Screwed |
| Ambient temperature (operation) | -40 °C … 55 °C |
| Ambient temperature (storage, transport) | -40 °C … 85 °C |
| Relative humidity (operation) | 95 % |
| MTTF | 84 a @ 40 °C |
| REACH | Compliant |
| RoHS | Compliant |
| CE | 2014/30/EU, 2011/65/EU |
| UKCA | EMC Regulations 2016, RoHS Regulations 2012 |
| UL Listed (US, CA) | E201820 |
| Profinet | Yes |
