Description

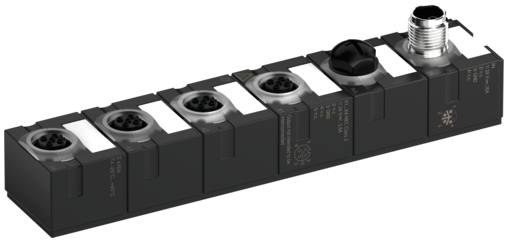

xThe Murr MICO IP67 electronic circuit protection module provides intelligent, selective protection for 24V DC load circuits in decentralised industrial installations. Designed for field-level mounting, this compact unit ensures reliable load monitoring and fast fault detection, reducing downtime and improving system availability.
Key Features:
- 4-channel electronic circuit protection
- 4A per channel for precise load protection
- IP67-rated housing for field and harsh environment installation
- Selective shutdown in case of overload or short circuit
- LED status indication for clear diagnostics
- Compact, decentralised mounting close to the load
- Increases machine uptime and system reliability
Specifications
x| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Shock resistance (EN IEC 60068-2-27) | 50 g 11 ms |
| Height | 34.8 mm |
| Width | 30 mm |
| Depth | 151 mm |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 45 °C |
| Ambient temperature (storage, transport) | -25 °C … 70 °C |
| Relative humidity (operation) | 95 % |
| Additional condition relative humidity | No dew formation |
| Product standard | EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Connection type 1 | Power In |
| Connection type 3 | X1-X4 |
