Description

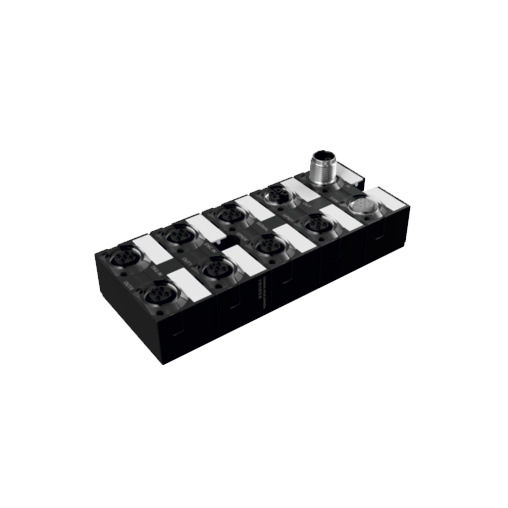

xThe Murr Camera IO Breakout Block provides a reliable interface for integrating vision systems into industrial automation environments. Designed for PNP signal configuration, this compact module simplifies wiring between camera systems and control units, ensuring secure connectivity and streamlined installation.
Key Features:
- PNP signal configuration for industrial applications
- M12 connectors for secure, vibration-resistant connections
- Simplifies camera I/O integration and wiring
- Compact, robust housing for industrial environments
- Clear port allocation for fast installation and maintenance
- Reduces wiring complexity in vision and inspection systems
- Suitable for machine vision and automation applications
Specifications
x| Parallel connection | No |
| Security level | SELV/PELV |
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Total current max. | 16 A |
| Open-circuit current | 35 mA |
| Current consumption max. | 6 A |
| Type Output | PNP |
| Switch-on capacity max. | 4.7 mF |
| Switching elements | Semiconductor switch |
| Additional information tripping current | NEC Class 2 |
| Installation height max. ASL | 2,000 m |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Inverse-polarity protection | Yes |
| Short-circuit protection | Yes |
| Material group (IEC 60664-1) | III |
| Shock resistance (EN IEC 60068-2-27) | 50 g XYZ-Axis |
| Vibration resistance (EN IEC 60068-2-6) | 15 g (5 ... 500 Hz) |
| Material housing | PBT |
| Combustibility class housing (UL94) | V-0 |
| Material contact carrier | PA |
| Combustibility class contact carrier frame (UL94) | V-0 |
| Material O-ring | FKM |
| Material potting compound | 2-component epoxy |
| Combustibility class potting compound (UL94) | V-0 |
| Net weight | 210 g |
| Height | 126 mm |
| Width | 50 mm |
| Depth | 34.5 mm |
| Installation measurement | 75 mm |
| Interference emission | EN IEC 61000-6-4 |
| Immunity to interference | EN IEC 61000-6-2 |
| Ambient temperature (operation) | -30 °C … 45 °C |
| Ambient temperature (storage, transport) | -40 °C … 70 °C |
| Relative humidity (operation) | 10 % … 95 % |
| REACH | Compliant |
| REACH SVHC | Lead (Pb) CAS 7439-92-1 |
| RoHS | Compliant |
| RoHS-Exemption | None, 7(a), 7(c)-I |
| China RoHS | EFUP-25 |
| California Proposition 65 | Nickel (Ni) CAS 7440-02-0 |
| WEEE | Category 5 |
| Halogen-free Material | Not halogen-free |
| Pb-free Material | No |
| Product standard | EN IEC 61000-6-2, EN IEC 61000-6-4, EN IEC 63000 |
| CE | 2014/30/EU, 2011/65/EU |
| UKCA | The Electromagnetic Compatibility Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 |
| UL Listed (US, CA) | E201820 |
