Description
xEngineered for demanding industrial environments, this Xelity PROFINET managed switch provides high-speed, reliable Ethernet connectivity with rugged IP67 protection and M12 connectors. Ideal for automation systems requiring secure, optimised, and fully managed network performance.
Key Features:
- 10 x 10/100/1000BT Gigabit Ethernet ports
- PROFINET-compliant managed switch with advanced network control
- IP67-rated housing for dust and water protection

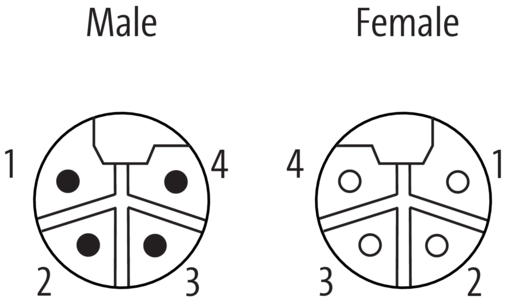

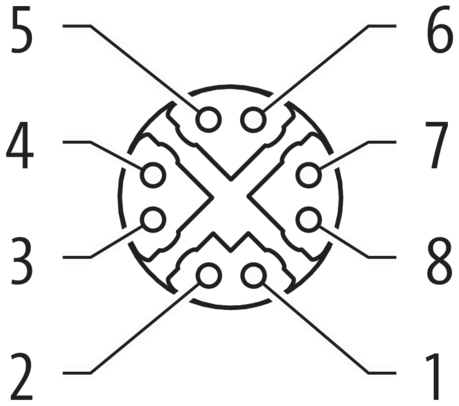

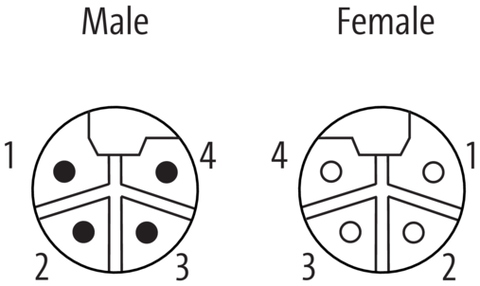

- M12 connectors for secure industrial cabling
- Supports VLAN, QoS, redundancy, and network monitoring
- Rugged design for harsh industrial and outdoor applications
- Optimised for critical automation and manufacturing systems
Specifications
x| Material | Xelity 10 TX IP67 M GE 4P |
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 9 V |
| Operating voltage DC max. | 30 V |
| Data transmission rate max. | 1.000 Mbit/s |
| LLDP frames | forwarding |
| Switch type | managed |
| Duplex | Full duplex |
| Auto-negotiation | Yes |
| Auto-crossover | Yes |
| Ring topology | STP, RSTP |
| Webserver | HTTP, HTTPS |
| Remote maintenance | Open VPN client |
| NAT | 1:1 |
| VLAN managed (IEEE 802.1Q) | Yes |
| VLANs max. (IEEE 802.1Q) | 64 |
| RSTP (IEEE 802.1D-2004, IEC 62439-1) | Default on |
| SNMP | v1, v3 (default active), v2c |
| Time synchronization | NTP client |
| Addressing | SSH-Befehlszeile, DCP, BOOTP/DHCP client |
| Alarm contact | No |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
| RMON | Yes |
| Port mirroring | 1:1 |
| Syslog | Yes |
| SNMP traps | Yes |
| Degree of protection (EN IEC 60529) | IP67 |
| Material housing | Metal |

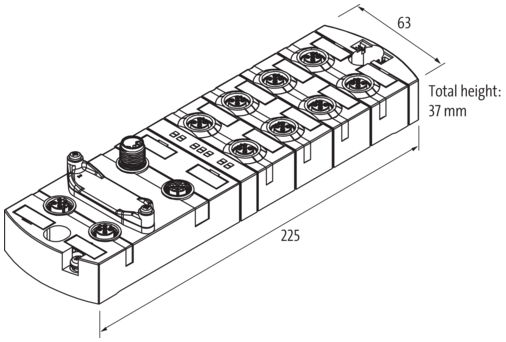

| Height | 224.5 mm |
| Width | 63 mm |
| Depth | 37.4 mm |
| Suitable for mounting type | 2-hole screw mounting |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 45 °C |
