Description

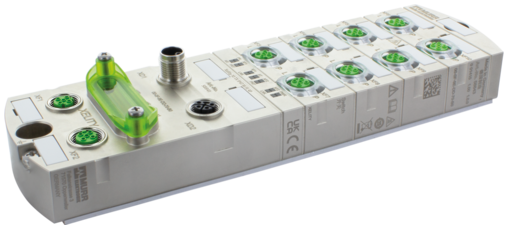

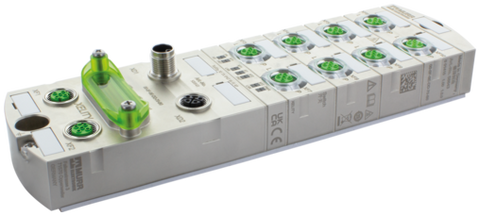

xXelity PROFINET Managed Switch 10x 10/100BT IP67 M12L 4P is an industrial-grade Ethernet switch engineered for reliable PROFINET communication in demanding automation environments. Designed for decentralised installations, it provides secure, high-performance network connectivity directly within the field.
Featuring ten 10/100Base-T ports with M12 L-coded 4-pin connectors, this managed switch ensures robust data transmission with vibration-resistant connections. The IP67-rated housing allows installation in harsh industrial conditions without the need for additional enclosures, making it ideal for factory automation, machine building, and process control applications.
Key Features
- PROFINET-compliant managed industrial Ethernet switch
- 10x 10/100Base-T ports

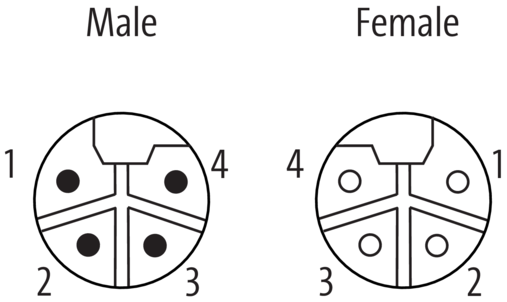

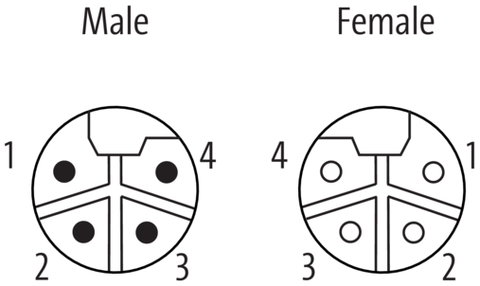

- M12 L-coded 4-pin connectors for secure field connectivity
- IP67-rated housing for harsh industrial environments
- Supports network diagnostics and configuration management
- Suitable for decentralised automation and machine-level networking
Specifications
x| Specification | Details |
|---|---|
| Material Short Text | Xelity 10 TX IP67 M FE PN 4P |
| Operating Voltage DC | 24 V (Min: 9 V / Max: 30 V) |
| Data Transmission Rate Max. | 100 Mbit/s |
| Supported Protocol | Profinet |
| Switch Type | Managed |
| Duplex | Full Duplex |
| Auto-Negotiation / Auto-Crossover | Yes / Yes |
| Ring Topology | STP, RSTP, MRP |
| Profinet Conformance Class | B |
| Profinet Addressing / Netload Class | DCP / III |
| MRP Client / Fast-Start-Up / Shared Device | Yes / No / No |
| IIoT Functions | Webserver: HTTP, HTTPS Remote Maintenance: Open VPN Client |
| Switch Management | NAT: 1:1 VLAN Managed: Yes (Max 64 VLANs) RSTP: Default on SNMP: v1 + v2c + v3 Time Sync: NTP client Addressing: SSH CLI, DCP, BOOTP/DHCP client |
| Diagnostics | Alarm Contact: No Diagnostic: No voltage LED Display: Ethernet connection/data traffic RMON: Yes Port Mirroring: 1:1 Syslog: Yes SNMP Traps: Yes |
| Device Protection | Electrical | Degree of Protection: IP67 |

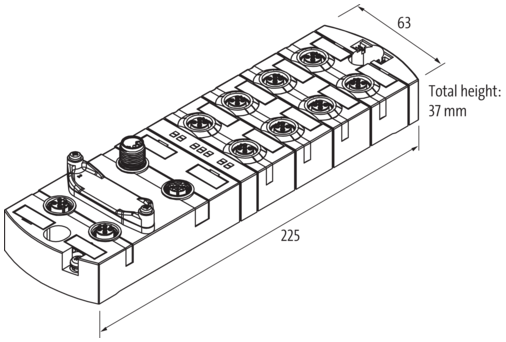

| Mechanical Data | Material Housing: Metal Mounting Type: 2-hole screw Dimensions (HxWxD): 224.5 x 63 x 37.4 mm |
| Environmental Characteristics | Operating Temperature: -25 °C to 55 °C |
