Murr Valve suppressor, with LED, form A, 18mm

Product Overview

The Murrelektronik Valve Plug Suppressor is a Form A 18mm EMC suppression module with integrated LED indicator designed for solenoid valve applications. This suppressor provides effective electromagnetic interference suppression for 230V AC/DC systems up to 50VA/W, featuring visual status indication and compact 18mm form factor for direct valve mounting.

Key Features

• Form A 18mm configuration for standard solenoid valve mounting
• Integrated LED indicator for visual status monitoring
• 230V AC/DC voltage rating with 50VA/W power handling
• Compact suppressor design for direct valve installation
• VBS-LD-230/50 model designation
• Industrial-grade EMC suppression capability

Technical Specifications

• Model: Valve Plug Suppressor Form A
• Article Number: 3124016
• Form Factor: Form A - 18mm
• Voltage Rating: 230V AC/DC
• Power Rating: 50VA/W
• LED Indicator: Integrated status LED
• Model Code: VBS-LD-230/50

Electrical Characteristics

• Operating Voltage: 230V AC/DC
• Power Handling: Up to 50VA/W
• Suppression Type: EMC interference suppression
• Application: Solenoid valve suppression
• LED Function: Visual status indication
• Form Standard: Form A industry standard

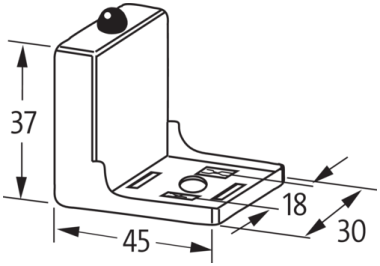

Physical Specifications

• Form Factor: 18mm Form A configuration
• Mounting: Direct plug-in to solenoid valve
• LED Indicator: Integrated visual status LED
• Construction: Industrial-grade suppressor module
• Size: Standard 18mm valve plug format

LED Indicator Features

• Visual Status: Real-time operational status indication
• Diagnostic Aid: Quick visual verification of suppressor function
• Maintenance Support: Easy troubleshooting and system monitoring
• Status Feedback: Immediate indication of suppressor operation
• Field Service: Simplified field diagnostics

Suppression Features

• EMC Compliance: Electromagnetic compatibility suppression
• Interference Reduction: Reduces electrical noise from solenoid valves
• System Protection: Protects control circuits from valve switching transients
• Industrial Standard: Form A configuration for universal compatibility
• Reliable Operation: Consistent suppression performance

Installation Specifications

• Mounting: Direct plug-in installation to solenoid valve
• Form Factor: Standard 18mm Form A configuration
• Connection: Universal valve connector compatibility
• Environment: Suitable for industrial valve applications
• Installation: Simple plug-and-play operation

Applications

• Solenoid valve EMC suppression
• Industrial automation valve control systems
• Pneumatic and hydraulic valve applications
• Process control valve systems
• Manufacturing automation equipment
• Machine control valve suppression

Solenoid Valve Benefits

• Direct Mounting: Plugs directly into standard solenoid valves
• Universal Fit: Compatible with standard 18mm Form A valves
• Noise Reduction: Eliminates electrical noise from valve switching
• System Protection: Protects sensitive control electronics
• Easy Installation: No additional wiring or mounting required

Standards and Compliance

• Form Standard: Industry-standard Form A configuration
• EMC Standards: Electromagnetic compatibility compliance
• Voltage Rating: Certified for 230V AC/DC operation
• Quality: Murrelektronik industrial quality standards
• Safety: Industrial safety standards compliance

Benefits

• Reduces electromagnetic interference from solenoid valves
• Provides visual confirmation of suppressor operation
• Enables plug-and-play installation on standard valves
• Protects control systems from valve switching transients
• Improves overall system EMC compliance
• Simplifies troubleshooting with LED status indication

Download existing graphical data for this product:

• Product Specification Sheet
