Product Overview
The Murrelektronik Tree 8TX IP67 Metal is an 8-port unmanaged switch designed for effective networking in harsh industrial environments. This robust switch features 8x M12 connections (D-coded) with zinc die-cast metal housing and IP67 protection rating, providing reliable Ethernet connectivity for industrial automation systems in demanding conditions with vibration resistance and EMV immunity.
Key Features
Technical Specifications
Connection Specifications
Applications
Standards and Compliance
Benefits
Physical Specifications

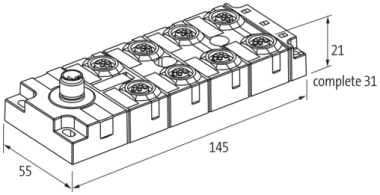

Download existing graphical data for this product:
IP Rating | IP67 |
Tariff | 85176200 |
GTIN | 4048879536509 |
Temperature: Operating / Dynamic | -25°C to 50°C |
Material: Housing / Grip | Nickeled / Zinc die-casting |
Weight (g) | 490g |
Connection Type | M12 / Female / 4 - Poles / M12 Male / 5 Poles |
Tightening Torque | 0,6 Nm |
Data Transmission Rate | 100 Mbits/s |
Operating Voltage | 9 - 30 VDC |
Interface | LED Display |
Mounting Type | 4 hole screw mounting |
Colour | Black |
