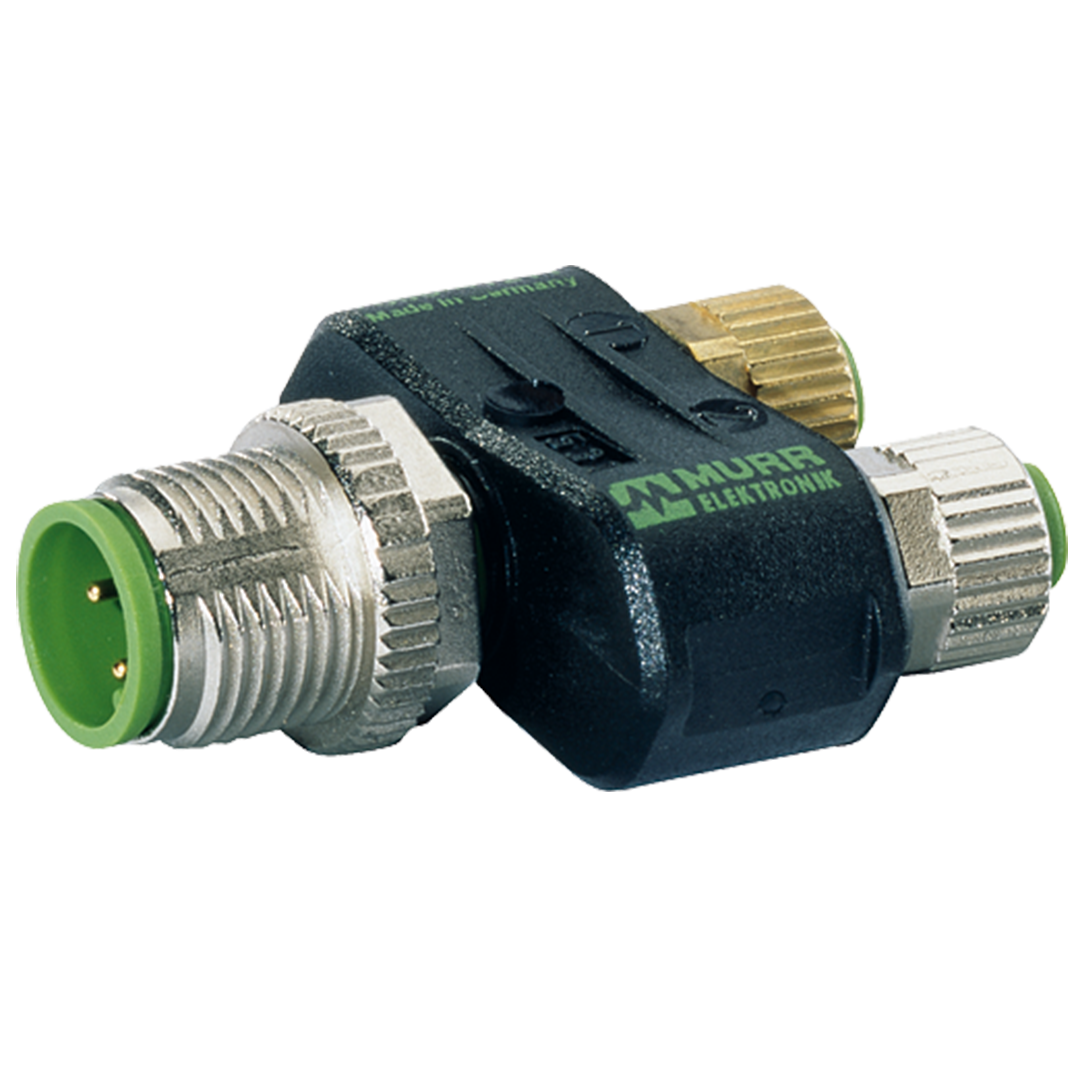

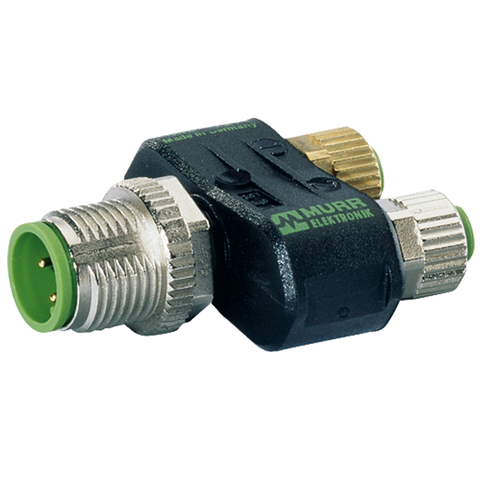

Murr T-Coupler Slim M12 male 5-pole / 2x M8 female

Product Overview

This M12 to M8 SlimLine T-coupler adapter (SKU: 7000-41231-0000000) features one male M12 straight connector branching to two female M8 straight connectors, all with A-coding for reliable signal distribution between different connector sizes in space-constrained industrial automation applications. The compact SlimLine design provides efficient connectivity for converting M12 systems to multiple M8 device connections with reduced footprint.

Connector Configuration:

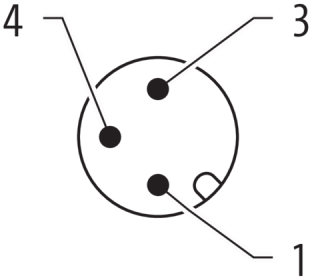

• Input: M12, 4-pole, 0° straight, A-coded (male)
• Output: 2x M8, 3-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm (input), M8 x 1mm (outputs), self-securing
• Tightening torque: 0.6 Nm (M12), 0.4 Nm (M8)
• Protection: IP67 when inserted and tightened
• Housing: Impact-resistant plastic, SlimLine design

SlimLine T-Coupler Design:

• Configuration: One M12 input to two M8 outputs
• Topology: Point-to-multipoint distribution with size conversion and compact footprint
• Signal splitting: Parallel connection distribution to smaller connectors
• Space efficiency: SlimLine profile for tight installation spaces
• Installation: Reduced size compared to standard M12-M8 T-couplers

Electrical Characteristics:

• Operating voltage: 50V AC / 60V DC max.
• Current rating: 4A max. per contact
• Rated surge voltage: 1.5 kV
• Conductor: 4-contact input / 2x 3-contact output
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Resistant to aggressive media (individual testing recommended)

Material & Construction:

• Housing: Impact-resistant plastic, SlimLine profile
• Contact plating: Nickel-plated for corrosion resistance
• Locking mechanism: Threaded with self-securing design
• Material compliance: RoHS compliant

Applications

Designed for space-constrained industrial automation environments requiring signal distribution from one M12 source to multiple M8 devices. Ideal for compact sensor networks where standard M12-M8 T-couplers are too large. Perfect for connecting M12 control systems to multiple M8 sensors or actuators in tight installation spaces, reducing wiring complexity while maintaining reliable connections.
