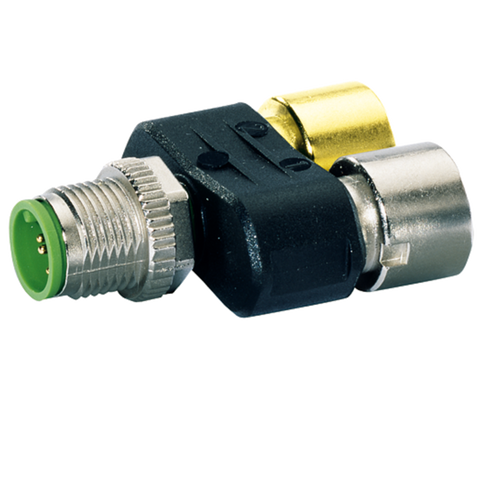

Murr T-Coupler Slim M12 male 5-pole / 2x M12 female 4-pole

Product Overview

This M12 SlimLine T-coupler adapter (SKU: 7000-41131-0000000) features one male M12 straight connector branching to two female M12 straight connectors, all with A-coding for reliable signal distribution in space-constrained industrial automation applications. The compact SlimLine design provides efficient connectivity for splitting a single M12 line into two parallel connections with reduced footprint.

Connector Configuration:

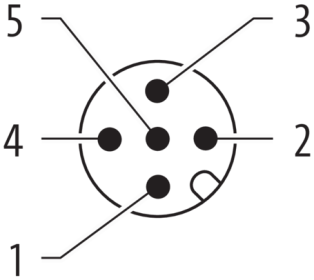

• Input: M12, 5-pole, 0° straight, A-coded (male)

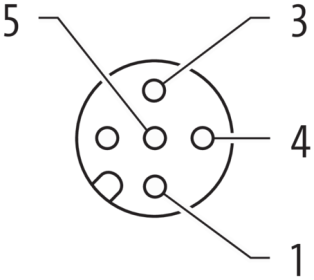

• Output: 2x M12, 4-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, recommended torque 0.6 Nm, self-securing
• Protection: IP67 when inserted and tightened (EN 60529)
• Housing: Impact-resistant plastic, SlimLine design

SlimLine T-Coupler Design:

• Configuration: One M12 input to two M12 outputs
• Topology: Point-to-multipoint distribution with compact footprint
• Signal splitting: Parallel connection distribution function
• Space efficiency: SlimLine profile for tight installation spaces
• Installation: Reduced size compared to standard T-couplers

Electrical Characteristics:

• Operating voltage: 60V AC/DC max. (30V AC/DC UL listed)
• Current rating: 4A max. per contact
• Rated surge voltage: 1.5 kV
• Conductor: 5-contact input / 2x 4-contact output
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Resistant to aggressive media (individual testing recommended)

Material & Construction:

• Housing: Impact-resistant plastic, SlimLine profile
• Contact plating: Nickel-plated for corrosion resistance
• Locking mechanism: Threaded with self-securing design
• Material compliance: RoHS compliant

Applications

Designed for space-constrained industrial automation environments requiring signal distribution from one M12 source to two M12 devices. Ideal for compact sensor networks, manufacturing automation, and control systems where standard T-couplers are too large. Perfect for DeviceNet/CANopen networks requiring parallel connections in tight installation spaces.

Download existing graphical data for this product:

Product Datasheet
