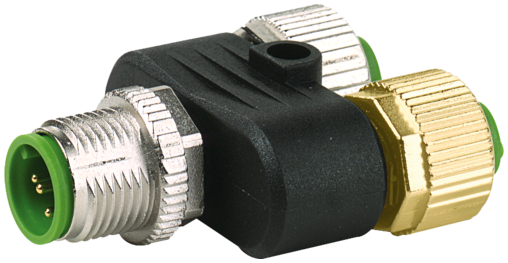

Murr T-coupler M12 male / M12 female 0°, 5-pole

Product Overview

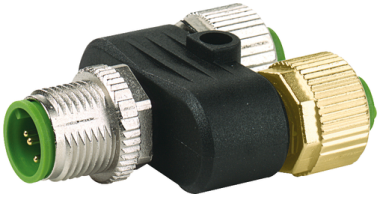

This M12 T-coupler adapter (SKU: 7000-41141-0000000) features one male M12 straight connector branching to two female M12 straight connectors, all with A-coding for reliable signal distribution in industrial automation applications. The plastic housing provides efficient connectivity for splitting a single M12 line into two parallel connections with full 5-pole configuration on all connectors.

Connector Configuration:

• Input: M12, 5-pole, 0° straight, A-coded (male)
• Output: 2x M12, 5-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, self-securing
• Protection: IP67 when inserted and tightened (EN 60529)
• Housing: Impact-resistant plastic

T-Coupler Design:

• Configuration: One M12 input to two M12 outputs
• Topology: Point-to-multipoint parallel circuit distribution

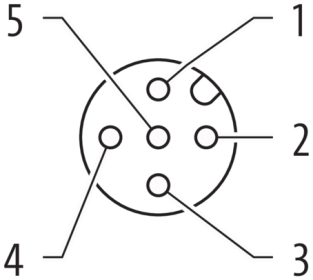

• Signal splitting: Full 5-pole to 5-pole connection on all ports
• Network expansion: Enables line splitting for process requirements
• Installation: Standard T-coupler design for reliable connections

Electrical Characteristics:

• Operating voltage: 60V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: 5-contact input / 2x 5-contact output
• Distribution: Parallel circuit configuration

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Individual testing recommended for aggressive media

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact material: Nickel-plated contacts
• Locking mechanism: Threaded self-securing design
• Compliance: IEC60664-1 category I

Applications

Designed for industrial automation environments requiring full 5-pole signal distribution from one M12 source to two M12 devices. Ideal for sensor and actuator networks, manufacturing automation, and control systems where parallel circuit distribution is needed with complete pin-to-pin connectivity across all connectors.
