Balluff BCC M415-M313-M313-U0014-000 T-splitter, 3A
Balluff BCC M415-M313-M313-U0014-000 T-splitter, 3A

Balluff BCC M415-M313-M313-U0014-000 T-splitter, 3A

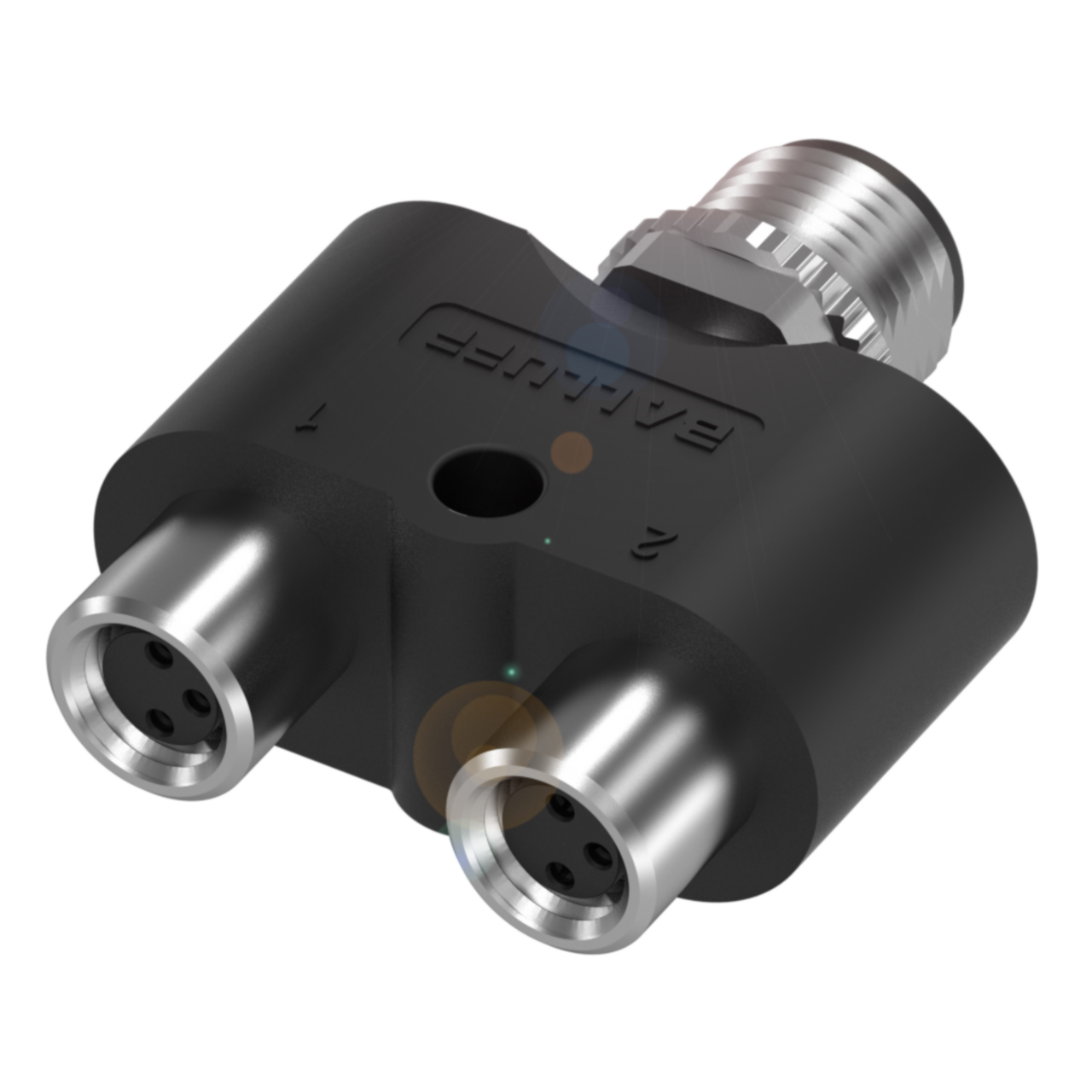

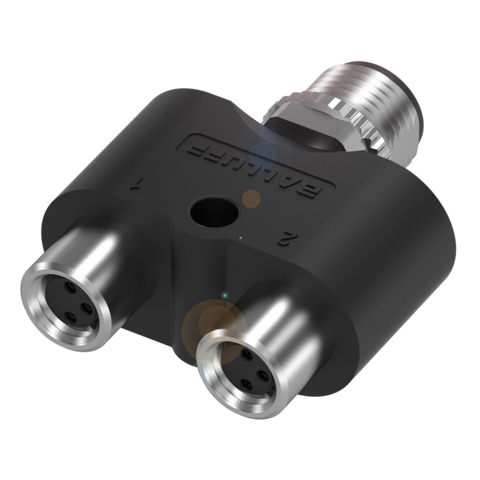

This T-splitter features a 4-pin M12x1 male connection and two 3-pin M8x1 female connections. It is ideal for splitting signals and power in industrial automation environments, supporting voltages up to 30 VDC and a rated current of 4 A.
Vendor: Balluff
SKU: BCC09JC
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 63 left in stock
Ask an expert
Description
Description
x

This T-splitter features a 4-pin M12x1 male connection and two 3-pin M8x1 female connections. It is ideal for splitting signals and power in industrial automation environments, supporting voltages up to 30 VDC and a rated current of 4 A.

Specifications
Specifications
x
IP RatingIP67
Material: Housing / GripGF / PA 6.6
Material: Jacket / Cover NutBrass / Nickel-free coated
Material: Sensing Surface / ContactsCopper Alloy / Gold Plated
Connection TypeConnection 1; M12x1 / Male / 4-pin / A-coded - Connection 2; M8x1 / Female / 3-pin / A-coded - Connection 3; M8x1 / Female / 3-pin / A-coded
Operating Voltage 60 VDC / 60 VAC
Rated Operating Current3A
Documents
Documents
x
Download Datasheet
