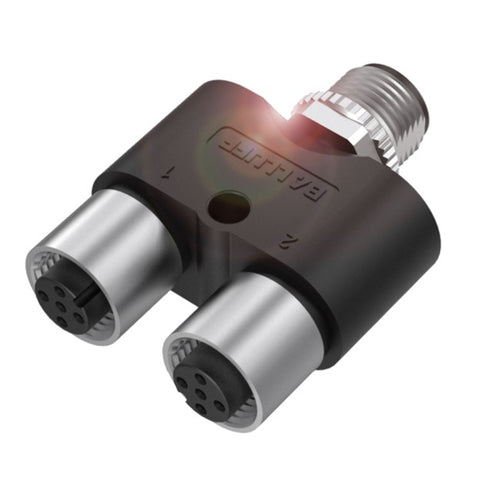

Description
xConnection 1
M12x1-Male, 5-pin, A-coded
Connection 2
M12x1-Female, 4-pin, A-coded
Connection 3
M12x1-Female, 4-pin, A-coded
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)
4.0 A
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cULus WEEE |
| Material: Housing / Grip | GF / PA 6.6 |
| Material: Jacket / Cover Nut | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | Copper Alloy / Gold-plated |
| Part Depth (mm) | 15.7mm |
| Part Width (mm) | 34.8mm |
| Part Length (mm) | 47mm |
| Part Diameter (mm) | 14.5mm |
| Connection Type | M12x1 / Male / 5-pin / A-coded - M12x1 / Female / 4-pin / A-coded |
| Connection Style | M12 x 1 |
| Tightening Torque | 0,6 Nm |
| Operating Voltage | 125 VDC / 125 VAC |
| Current Rating / Rated Current | 4,0 A |
