Murr T Coupler M12 male/ M12 female 0°, 5-pole, NO

Product Overview

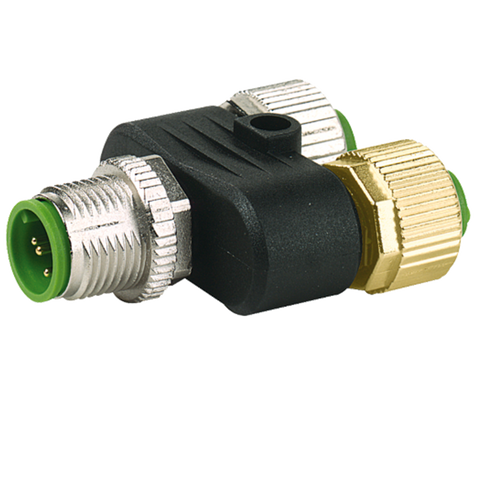

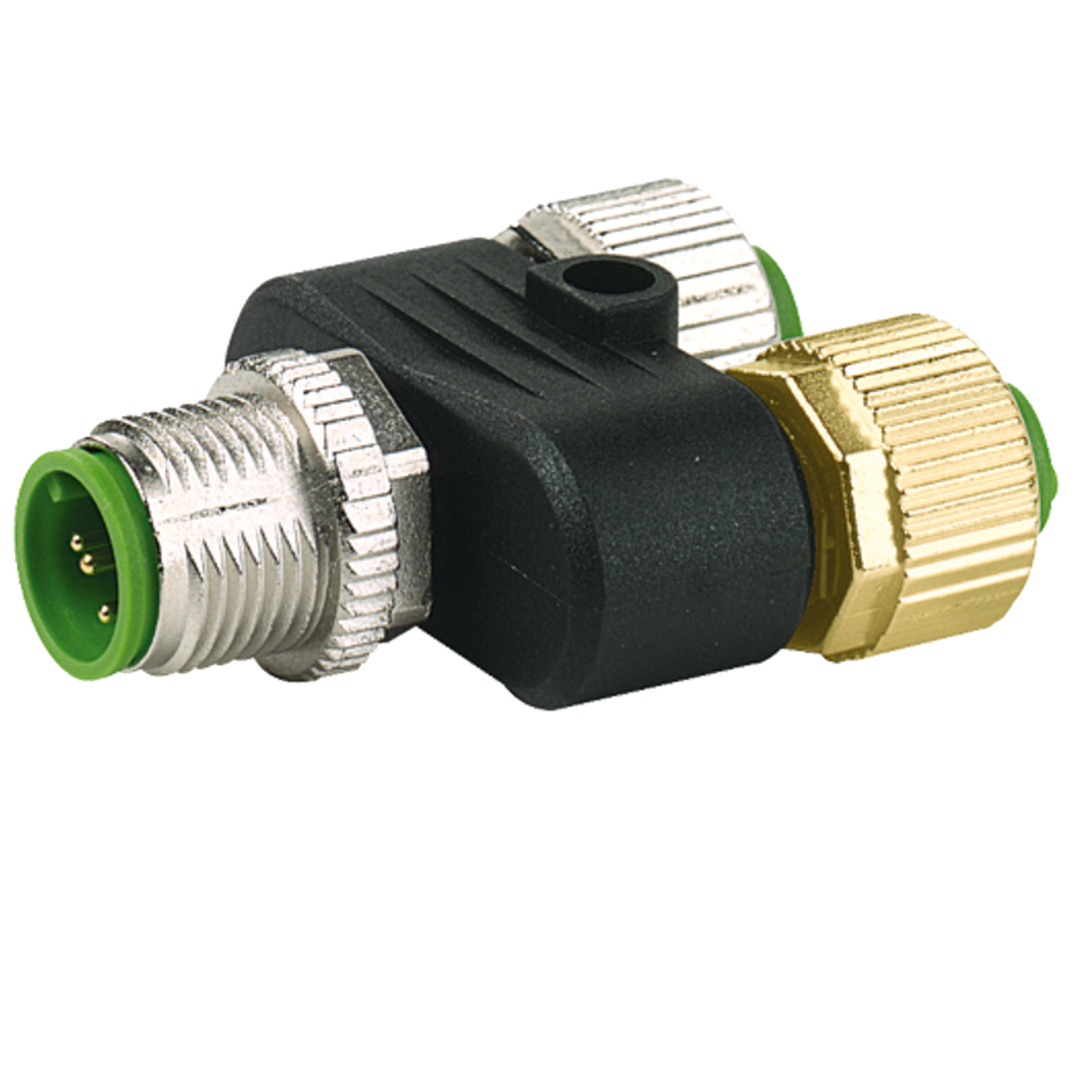

This M12 T-coupler adapter (SKU: 7000-41121-0000000) features one male M12 straight connector branching to two female M12 straight connectors, all with A-coding for reliable signal distribution in industrial automation applications. The compact plastic housing enables efficient splitting of a single M12 line into two parallel connections.

Connector Configuration:

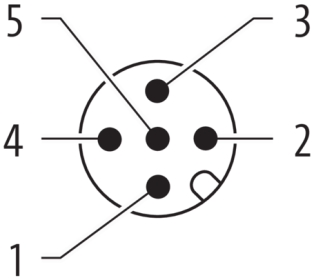

• Input: M12, 5-pole, 0° straight, A-coded (male)

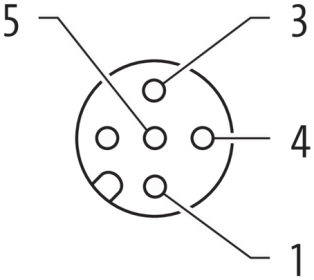

• Output: 2x M12, 4-pole, 0° straight, A-coded (female)
• Protection: IP67 when mated
• Housing: Impact-resistant plastic

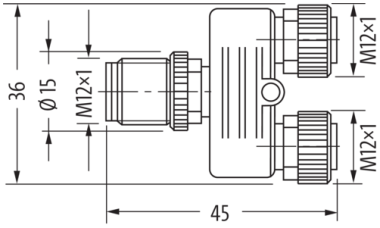

• Dimensions: 45mm x 36mm x 15mm (H x W x D)

Electrical Characteristics:

• Operating voltage: 60V AC/DC max.
• Current rating: 4A max. per contact
• Termination: IDC (Insulation Displacement Connection)
• Distribution function: Parallel connection (NO)

Environmental Performance:

• Operating temperature: -25°C to +80°C
• Chemical resistance: Good resistance to oils, chemicals, and aggressive media
• Material compliance: RoHS compliant

Applications

Ideal for industrial automation requiring signal distribution from one M12 source to two M12 devices. Perfect for DeviceNet/CANopen networks, sensor splitting, and manufacturing automation where parallel connections are needed without signal degradation.

Download existing graphical data for this product:

Product Datasheet
