Murr SVS Valve plug, form CI, LED, 2+PE, field-wireable, M12

Product Overview

The Murrelektronik SVS-Eco valve plug is a field-wireable connector designed for industrial valve and solenoid connectivity applications with integrated LED indication and VDR protection. This Form CI (9.4mm) valve plug features screw terminal connections and operates at 24V AC/DC ±15% with built-in LED status indication and VDR (Voltage Dependent Resistor) for surge protection. The compact design provides reliable valve control in demanding industrial automation environments.

Key Features

• SVS-Eco Form CI (9.4mm) valve connector with integrated electronics
• Built-in yellow LED indication for operational status visualization
• VDR (Voltage Dependent Resistor) for electrical surge protection
• Field-wireable construction with screw terminal connections
• 2+PE contact configuration for standard valve applications
• 24V AC/DC ±15% operating voltage tolerance
• Compact 9.4mm socket depth for space-constrained installations
• Metric threading for standard industrial connections
• Plastic housing with chemical and oil resistance
• Maximum 0.5mm² connection cross section

Technical Specifications

• Article Number: 7000-30205-0000000

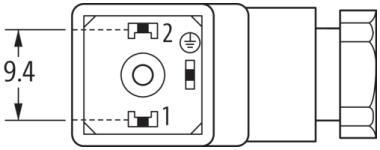

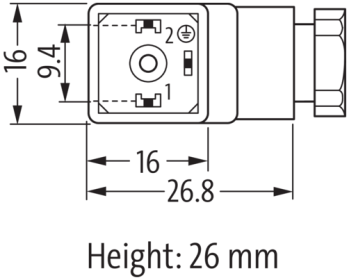

• Connector Type: SVS-Eco Form CI (9.4mm)
• Socket Depth: 9.4mm
• Contact Configuration: 2 + PE
• Voltage Rating: 24V AC/DC ±15%
• Connection Method: Screw terminal, field-wireable
• Connection Cross Section: Maximum 0.5mm²
• Clamping Range: 4-6mm

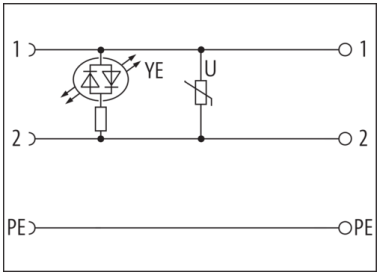

• LED Indication: Yellow LED for status indication
• Protection: VDR (Voltage Dependent Resistor)
• Housing Material: Plastic with chemical resistance
• Threading: Metric

Applications

• Industrial valve and solenoid control systems requiring status indication
• Pneumatic system automation with visual feedback requirements
• Process control applications needing surge protection
• Factory automation systems requiring diagnostic capabilities
• Hydraulic actuator control with LED status monitoring
• Custom valve control applications with protection requirements
• Applications requiring both control and visual status confirmation

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Industrial Standards: Designed for industrial automation environments
• Safety Standards: PE connection for protective earthing
• Protection Standards: Industrial-grade environmental protection
• Chemical Resistance: Tested for oils and chemicals (application-specific testing recommended)

Benefits

• Field-wireable design eliminates need for pre-assembled cordsets
• LED indication provides immediate visual status feedback
• VDR protection safeguards against electrical surges
• Compact Form CI design saves installation space
• Chemical resistant housing ensures durability in harsh environments
• Screw terminal connections provide secure field termination
• Integrated electronics reduce external component requirements
• Standard metric threading ensures compatibility with existing systems
