Murr SVS Valve plug, form A, 110V LED + VDR, M16x1.5

Product Overview

The Murrelektronik SVS valve plug Form A provides field-wireable power connection for solenoid valves and pneumatic applications requiring on-site cable termination. This 18mm connector features integrated LED status indication and VDR protection with 110V AC/DC operation, allowing flexible field installation with user-supplied cables for reliable valve control applications with visual feedback and surge protection.

Key Features

• SVS valve plug Form A 18mm for field-wireable installation
• Integrated LED indicator for visual status monitoring
• Built-in VDR (Voltage Dependent Resistor) protection for valve circuits
• 110V AC/DC ±10% operation for higher voltage applications
• M16x1.5 metric threading for secure cable sealing
• Field-wireable design for custom cable length applications
• Plastic housing with excellent chemical and oil resistance

Technical Specifications

• Article Number: 7000-29081-0000000

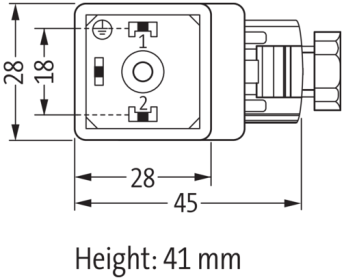

• Connector Type: SVS valve plug Form A, 18mm, field-wireable
• Voltage Rating: 110V AC/DC ±10%
• Current Rating: Maximum 4A per contact
• Threading: M16x1.5 metric

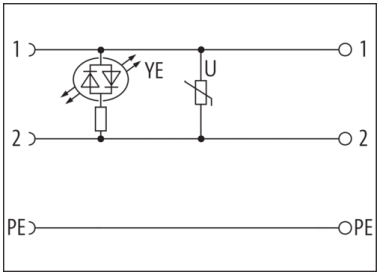

• LED Function: Status indication with VDR protection
• Protection Rating: IP65 when properly installed
• Temperature Range: -20°C to +60°C operating temperature
• Connection Method: Field-wireable screw terminals

Applications

• Custom cable length solenoid valve power connections with higher voltage requirements
• Pneumatic system control requiring 110V operation with visual status feedback
• Industrial automation valve networks requiring field-serviceable connections
• Process control applications with valve status verification and surge protection
• Manufacturing equipment requiring reliable valve connectivity with custom cable lengths
• Applications requiring field termination flexibility with higher voltage operation

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP65 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• Field-wireable design reduces inventory requirements for multiple cable lengths
• LED indicator provides immediate visual status feedback
• VDR protection safeguards valve coils and control circuits from voltage spikes
• 110V operation suitable for higher voltage valve applications
• M16x1.5 threading ensures secure cable entry and environmental sealing
• On-site termination capability reduces installation time and complexity
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
