Murr SVS Valve plug, 10mm field-wireable, 24VAC, M16x1.5

Product Overview

The Murrelektronik SVS valve plug Form B provides field-wireable power connection for compact solenoid valves and pneumatic applications requiring on-site cable termination. This 10mm connector features integrated LED status indication and Z-diode protection with 24V AC/DC operation, allowing flexible field installation with user-supplied cables for reliable valve control applications with visual feedback and surge protection.

Key Features

• SVS valve plug Form B 10mm for field-wireable installation
• Compact design for smaller valve applications
• Integrated LED indicator for visual status monitoring
• Built-in Z-diode protection for valve circuit protection
• 24V AC ±20% / DC ±25% operation for standard valve applications
• M16x1.5 metric threading for secure cable sealing
• Field-wireable design for custom cable length applications

Technical Specifications

• Article Number: 7000-29561-0000000
• Connector Type: SVS valve plug Form B, 10mm, field-wireable
• Voltage Rating: 24V AC ±20% / DC ±25%
• Current Rating: Maximum 4A per contact
• Threading: M16x1.5 metric

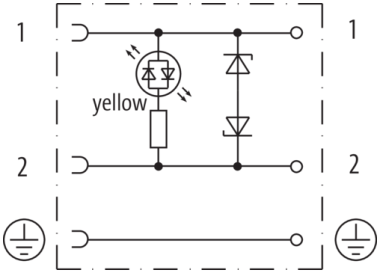

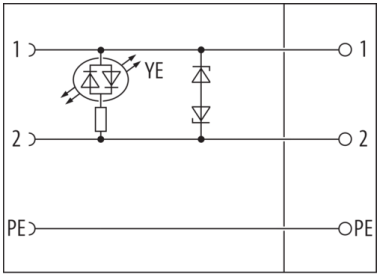

• LED Function: Status indication with Z-diode protection
• Protection Rating: IP65 when properly installed
• Temperature Range: -20°C to +60°C operating temperature
• Connection Method: Field-wireable screw terminals

Applications

• Custom cable length compact solenoid valve power connections
• Small pneumatic system control requiring visual status feedback
• Industrial automation valve networks with space-constrained installations
• Process control applications with compact valve status verification
• Manufacturing equipment requiring reliable valve connectivity in confined spaces
• Applications requiring field termination flexibility with compact valve form factors

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP65 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• Form B 10mm design ideal for compact valve applications and space-constrained installations
• Field-wireable design reduces inventory requirements for multiple cable lengths
• LED indicator provides immediate visual status feedback
• Z-diode protection safeguards valve coils and control circuits from voltage spikes
• M16x1.5 threading ensures secure cable entry and environmental sealing
• On-site termination capability reduces installation time and complexity
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
