Murr SVS Eco valve plug, 2+PE field-wireable, 250VAC/DC

Product Overview

The Murrelektronik SVS Eco valve plug Form B provides cost-effective field-wireable power connection for compact solenoid valves and pneumatic applications requiring on-site cable termination. This 10mm connector features a basic 2-pole + PE configuration with 250V AC/DC operation, allowing flexible field installation with user-supplied cables for reliable valve control applications without additional components.

Key Features

• SVS Eco valve plug Form B 10mm for field-wireable installation
• Cost-effective design without LED or protection components
• 2-pole + PE configuration for basic valve connections
• 250V AC/DC operation for higher voltage applications
• 0.5-1.5mm² wire cross-section capacity
• 6-8mm cable diameter sealing range
• Metric threading for secure cable sealing

Technical Specifications

• Article Number: 7000-29765-0000000

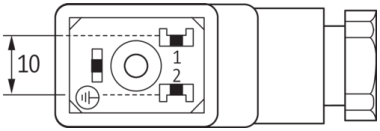

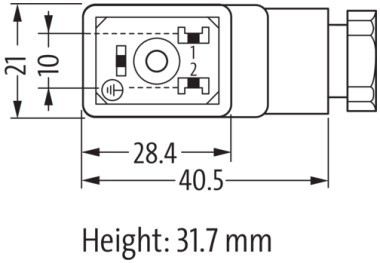

• Connector Type: SVS Eco valve plug Form B, 10mm, field-wireable
• Voltage Rating: 250V AC/DC
• Wire Cross-Section: 0.5-1.5mm² per conductor
• Cable Diameter Range: 6-8mm sealing range

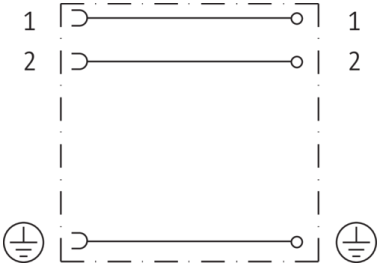

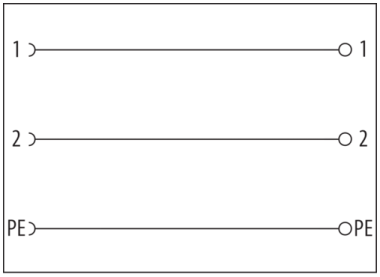

• Connection Configuration: 2-pole + PE (protective earth)
• Protection Rating: IP65 when properly installed
• Connection Method: Field-wireable screw terminals
• Threading: Metric

Applications

• Cost-effective compact solenoid valve power connections with custom cable lengths
• Basic pneumatic system control without status indication requirements
• Industrial automation valve networks requiring economical field-serviceable connections
• Process control applications with simple valve operation
• Manufacturing equipment requiring reliable valve connectivity in budget-conscious installations
• Applications requiring field termination flexibility without additional protection features

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP65 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• SVS Eco design provides cost-effective solution for basic valve applications
• Form B 10mm design ideal for compact valve applications and space-constrained installations
• Field-wireable design reduces inventory requirements for multiple cable lengths
• 250V operation suitable for higher voltage valve applications
• 2-pole + PE configuration ensures safe grounding connection
• On-site termination capability reduces installation time and complexity
• Metric threading ensures secure cable entry and environmental sealing

Downloads

• Product Data Sheet
