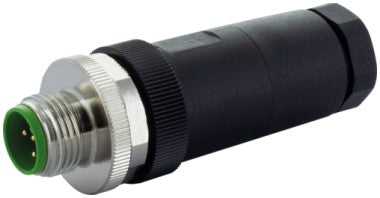

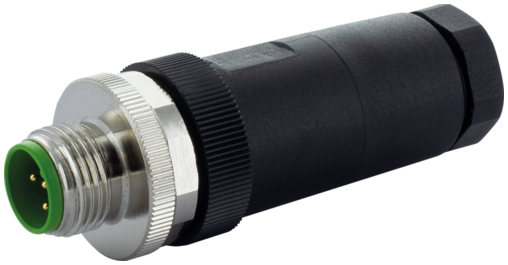

Murr Screw terminal, M12 male 0°, 5-pole, cable Ø 6 - 8mm
Murr Screw terminal, M12 male 0°, 5-pole, cable Ø 6 - 8mm

Murr Screw terminal, M12 male 0°, 5-pole, cable Ø 6 - 8mm

Vendor: Murrelektronik
SKU: 7000-12762-0000000
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP67
Tariff85366990
GTIN4065909045039
Material: Housing / GripPBT
Material: Sensing Surface / ContactsCopper Alloy / Gold-plated
Material: LockingCopper Alloy

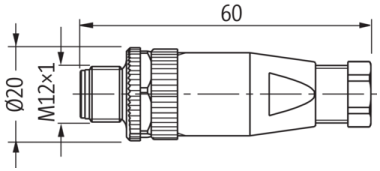

Part Length (mm)60mm
Part Diameter (mm)20mm
Cable Diameter (mm)6mm ... 8mm
Weight (g)24g
Conductor Cross-section0,75mm²

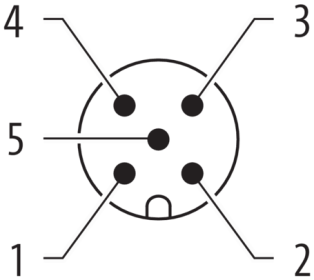

Connection TypeMale / Straight / M12 / 5-Pole
Connection StyleScrew terminals
Tightening Torque0,6 Nm
Operating Voltage 60 VDC
Current Rating / Rated Current4 A
Documents
Documents
x
Download Datasheet
