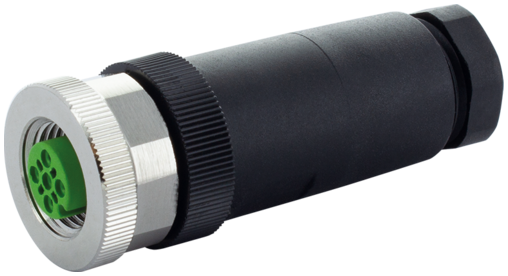

Murr screw terminal, M12 female 0º, 5-pole, A-coded

Product Overview

The Murrelektronik M12 female straight field-wireable connector features reliable screw terminal technology for industrial sensor and actuator systems requiring secure field termination with socket configuration. This A-coded connector accommodates 5-pole configurations with wire cross-sections up to 0.75mm² and larger cable diameters from 6 to 8mm, providing robust socket connections in industrial automation environments where field assembly with medium to heavy gauge wires is essential.

Key Features

• M12 female 0° straight connector with A-coding and 5-pole configuration
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 6 to 8mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• Operating voltage suitable for industrial signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-12962-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable

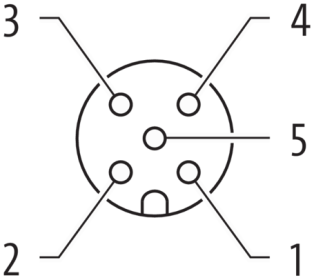

• Pole Configuration: 5-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 6 to 8mm
• Operating Voltage: Industrial signal voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring 5-pole signal capacity
• Industrial automation systems with medium to heavy control wiring requiring on-site female assembly
• Signal receiving applications where reliable field termination with larger cable sizes is essential
• Maintenance and repair applications requiring secure socket replacement
• Control panel connections with multi-signal socket requirements using larger gauge cables
• Applications where pre-assembled female cordsets are impractical for medium-duty wiring
• Process control systems requiring reliable field socket connections
• Harsh industrial environments requiring robust cable connections with chemical resistance

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• 5-pole socket configuration provides comprehensive signal transmission capability
• Enhanced cable diameter range accommodates larger industrial cables up to 8mm
• Field-wireable configuration eliminates need for pre-assembled female cordsets
• A-coding ensures proper mating with compatible male connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for medium-duty field socket termination requirements
• Easy field installation with standard screw terminal connections
• Reliable performance in automation and control applications
• Optimized sealing range provides secure environmental protection
• Enhanced 5-pole design supports complex signal routing and distribution

Downloads:

• Product Data Sheet
