Murr Power cable, M12, male 0° / female 0°, 5-pole, 10m

Product Overview

M12 Power extension cable (SKU: 7000-P4241-P041000) designed for high-current power applications in industrial automation systems. This L-coded 5-pole cable features M12 male to M12 female straight connectors with 10 meters of robust PUR cable and 5×1.5mm² conductors for reliable power extension connections.

Key Features

• M12 Power male to M12 Power female straight (0°) L-coded connectors
• 10-meter black PUR cable for power extension applications
• 5 × 1.5mm² high-current conductors with cable sleeves included
• UL/CSA certified with IP67/IP68/IP69K protection
• Drag chain compatible with 5 million cycle rating
• Gold-plated contacts for superior conductivity

Technical Specifications

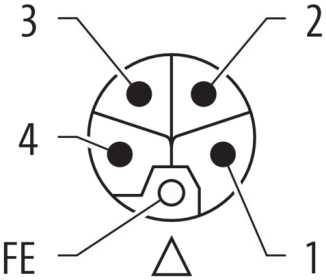

• Connector 1: M12 Power male straight (0°) L-coded, 5-pole
• Connector 2: M12 Power female straight (0°) L-coded, 5-pole
• Cable Length: 10 meters
• Wire Configuration: 5 × 1.5mm² stranded copper (Class 6)
• Operating Voltage: Up to 1000V AC, 63V DC max
• Current Rating: 12A max per contact
• Operating Temperature: -30°C to +85°C

Applications

• Power extension for automation equipment
• Motor and drive power connections requiring distance
• Industrial machinery power distribution
• Equipment power connections in control systems

Compliance & Standards

• IEC 61076-2-111 standard compliant L-coding
• UL/CSA certified construction
• Drag chain rated for 5 million cycles
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
