Product Overview

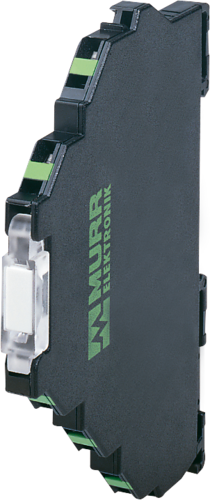

The Murrelektronik MIRO 6.2 is a high-frequency transistor-based optocoupler module designed for ultra-fast switching applications requiring precise signal isolation. This ultra-compact 6.2mm width module provides DC switching capability up to 0.1A at 48VDC output with exceptional high-frequency performance up to 500kHz. The device features spring clamp terminal connections and 24VDC nominal operation, making it ideal for high-speed digital signal isolation, precision timing applications, and fast-response control systems.

Key Features

• Ultra-high frequency operation: up to 500kHz switching capability
• Ultra-compact 6.2mm width design for maximum space efficiency
• Transistor-based optocoupler for precision DC switching
• Input range: up to 30VDC maximum
• Output capability: 48VDC, 0.1A switching
• Spring clamp terminals for tool-free wiring
• 24VDC nominal operation for industrial control systems
• High-speed optical isolation for fast applications

Technical Specifications

• Model: MIRO 6.2 Optocoupler Module
• Article Number: 526100
• Input Voltage: 30VDC maximum
• Output Voltage: 48VDC maximum
• Output Current: 0.1A continuous maximum
• Switching Frequency: Up to 500kHz
• Control Voltage: 24VDC nominal
• Module Width: 6.2mm
• Connection Type: Spring clamp terminals

Electrical Characteristics

• Control Input: 24VDC nominal, 30VDC maximum
• High-Frequency Operation: Up to 500kHz switching frequency
• Load Output: 48VDC maximum, 0.1A switching capability

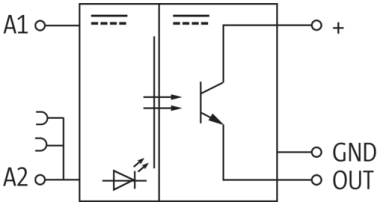

• Switching Technology: High-speed photo-transistor optocoupler
• Output Type: Fast-switching transistor output
• Response Time: Ultra-fast switching for high-frequency applications

Standards and Compliance

• Industrial Standards: Designed for high-frequency industrial applications
• Safety Standards: Galvanic isolation for electrical safety
• Quality Standards: Murrelektronik industrial quality and reliability
• DIN Rail Standards: Standard DIN rail mounting compatibility
• Environmental Standards: Industrial environmental protection ratings

Applications

• High-frequency PWM and pulse generation systems
• Fast digital signal isolation and conditioning
• Precision timing and synchronization circuits
• High-speed encoder signal processing
• Ultra-fast switching control applications
• High-frequency communication signal isolation

Installation Features

• Ultra-Compact Design: 6.2mm width maximizes control cabinet space
• Spring Clamp Terminals: Tool-free wiring for quick installation
• DIN Rail Mounting: Standard industrial mounting capability
• High-Speed Interface: Optimized for ultra-fast switching performance
• Professional Integration: Standard industrial module format

High-Frequency Benefits

• 500kHz Operation: Enables ultra-high frequency switching applications
• Fast Response: Minimal switching delays for precision control
• Signal Integrity: Maintains signal quality at high frequencies
• Compact Performance: High-speed capability in minimal footprint
• Precision Control: Accurate timing for demanding applications

Benefits

• Enables ultra-high frequency switching up to 500kHz for precision timing and fast control applications
• Provides ultra-compact 6.2mm width design for maximum control cabinet space efficiency
• Features spring clamp terminals for tool-free installation and maintenance convenience
• Offers reliable galvanic isolation between control and switching circuits at high frequencies
• Supports demanding high-speed applications with exceptional switching performance and signal integrity

Download existing graphical data for this product:

• Product Specification Sheet
