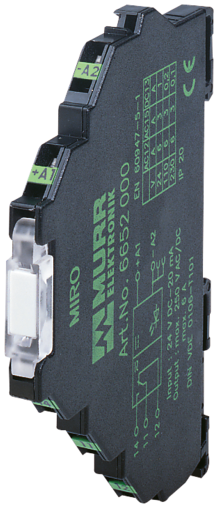

Murr Opto-coupler module, spring, 24VDC, 10A

Product Overview The Murrelektronik MIRO TR is a high-current optocoupler module designed for industrial signal isolation and switching applications. This compact 6.2mm wide DIN-rail module provides galvanic isolation between input and output circuits while handling loads up to 10A. Featuring spring clamp terminals and a transistor output, it delivers reliable...

Vendor: Murrelektronik

SKU: 6652520

Availability: In stock

Product type: Field Sensing & Connectivity

Please hurry! Only 2 left in stock

Ask an expert

Description
Specifications
Documents

Product Overview

The Murrelektronik MIRO TR is a high-current optocoupler module designed for industrial signal isolation and switching applications. This compact 6.2mm wide DIN-rail module provides galvanic isolation between input and output circuits while handling loads up to 10A. Featuring spring clamp terminals and a transistor output, it delivers reliable optoelectronic signal transfer for demanding industrial automation applications with complete electrical isolation.

Key Features

10A transistor output with 48VDC switching capability
Wide input voltage range: 5-53VDC
Spring clamp terminals for tool-free wire connections
Compact 6.2mm DIN-rail mounting design
LED status indication (yellow) for input signal display
Galvanic isolation between input and output circuits
Short-circuit and overload protection
High switching frequencies up to 500kHz capability
Shock and vibration resistant construction

Technical Specifications

Model: MIRO TR 24VDC 24VDC 10A FK
Article Number: 6652520
Input Voltage Range: 5-53VDC
Output Voltage: 48VDC maximum
Output Current: 10A maximum
Output Type: Transistor (solid-state)
Housing Width: 6.2mm

Connection Specifications

Terminal Type: Spring clamp terminals (FK series)
Input Current: 10mA typical
Output Configuration: Transistor switching
Isolation: Galvanic isolation between input/output
Mounting: DIN-rail mount
Status Display: LED (yellow) input indication

Applications

Signal level conversion and isolation in industrial systems
High-current switching applications requiring electrical isolation
Process control systems with different voltage levels
Safety circuits requiring galvanic isolation
Motor control and power switching applications
PLC interface applications with signal isolation requirements

Standards and Compliance

Safety Standards: Industrial optocoupler safety requirements for galvanic isolation
Environmental Standards: Industrial temperature and vibration resistance ratings
Quality Standards: German engineering and manufacturing standards
Installation Standards: DIN-rail mounting compatibility standards

Benefits

High 10A output current capability for power switching applications
Wide input voltage range accommodates various control signal levels
Spring clamp terminals enable quick and secure tool-free connections
Compact 6.2mm width maximizes control panel space efficiency
Optocoupler technology provides complete electrical isolation and safety
No mechanical wear ensures long-term reliability and silent operation
High switching frequency capability supports fast control applications

Download existing graphical data for this product:

Product Specification Sheet

MIRO TR 24VDC 24VDC 10A FK OPTO-COUPLER MODULE

Product Information

IN: 53 VDC - OUT: 48 VDC / 10 A

Art.No.	6652520
Weight	0.028 kg
Country of origin	CZ
Model designation	MIRO,TR,24VDC,24VDC,10A,FK

Description

Transistor 10 A, 24 V DC, Spring clamp terminals

Technical Data

Electrical data | Input

Input voltage DC min.	10 V
Input voltage DC max.	53 V
Input voltage OFF DC min.	0 V
Input voltage OFF DC max.	5 V
Current input DC	10 mA

Electrical data | Output

Switch-off delay resistive load max.	5000 µs
On-delay resistive load max.	2000 µs
Quiescent current OFF max.	0.025 mA
Switching frequency inductive max.	0.1 Hz
Switching frequency ohmic max.	1 Hz
Voltage switching DC min.	5 V
Switching voltage DC max.	48 V
Switching current min.	1 mA
Switching current max.	10 A
Voltage drop DC max.	0.12 V

Diagnostics

Status indication LED

yellow

Device protection | Electrical

Rated insulation voltage

2750 V

Device protection | Media

Flame resistance

flame retardant

Mechanical data | Material data

Material housing	Plastic
Color housing	black

Mechanical data | Mounting data

Mounting method	geschnappt
Suitable for mounting type	mounting rail, (EN 60715)
Height	78 mm
Width	6.2 mm
Depth	70 mm

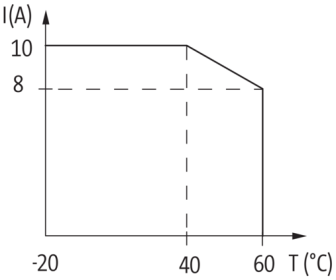

Environmental characteristics | Climatic

Operating temperature min.	-20 °C
Operating temperature max.	60 °C

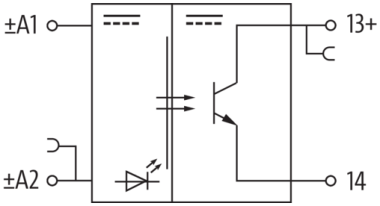

Connection Data

Connection type 1

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	black
No. of poles	1
PIN 1	13 +

Connection type 2

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	black
No. of poles	1
PIN 1	14

Connection type 3

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	black
No. of poles	1
PIN 1	A 1

Connection type 4

Connection	Spring clamp terminals FK
Family construction form	terminal
Gender	female
Color contact carrier	black
No. of poles	1
PIN 1	A 2

Commercial Data

ECLASS-6.0	27371601
ECLASS-6.1	27371604
ECLASS-7.0	27371604
ECLASS-8.0	27371604
ECLASS-9.0	27371604
ECLASS-10.1	27371604
ECLASS-11.1	27371604
ECLASS-12.0	27371604
ETIM-5.0	EC001504
ETIM-6.0	EC001504
ETIM-7.0	EC001504
ETIM-8.0	EC001504
customs tariff number	85414900
GTIN	4048879021746
Packaging unit	1
