Murr O-link / analog converter, M12, straight

Product Overview

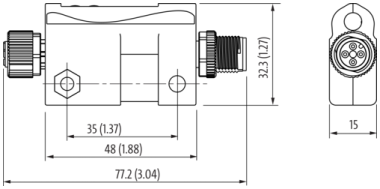

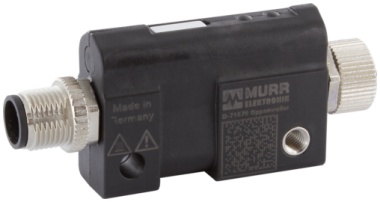

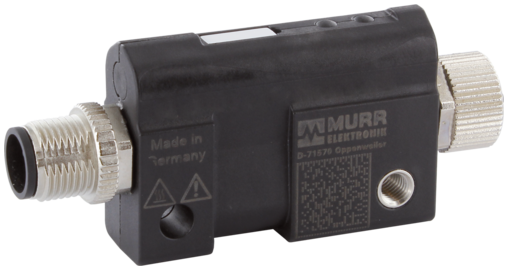

The Murrelektronik IO-Link analog converter is a multi-function analog output device designed for industrial automation applications. This converter enables seamless integration of analog output devices into IO-Link communication networks, providing high-precision 16-bit resolution analog signal generation with voltage and current output capabilities. The device features M12 straight connector configuration with IP65/IP67 protection rating and supports IO-Link V1.1 Class A communication standard for reliable digital-to-analog conversion.

Key Features

• Multi-function analog output (AO Multi U/I) capability
• High-precision 16-bit digital-to-analog conversion
• IO-Link V1.1 Class A communication standard
• M12 straight connector with IP65/IP67 protection
• Digital communication eliminates analog signal interference
• Plug & play preconfigured operation with LED diagnostics
• Port Class A cycle time minimum 2.3 ms
• Multi-output voltage and current signal generation

Technical Specifications

• Model: IO-Link Analog Converter AO Multi U/I
• Article Number: 5000-00501-2300001
• Resolution: 16-bit digital-to-analog conversion
• IO-Link Version: V1.1 Class A
• Protection Rating: IP65/IP67
• Connector Type: M12 straight configuration
• Cycle Time: Port Class A minimum 2.3 ms
• Data Width: 16-bit / 2 channels

Electrical Characteristics

• Output Type: Multi-function voltage and current analog outputs
• Communication Protocol: IO-Link V1.1 digital transmission

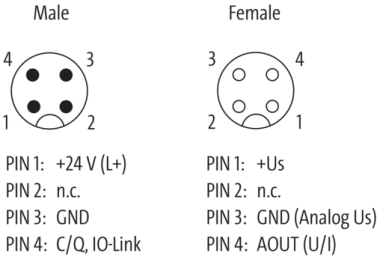

• Connection Method: Standard M12 4-pole A-coded connector
• Power Supply: Via IO-Link master connection
• Cable Requirements: Standard unshielded M12 IO-Link cables
• Signal Generation: Fast and precise 16-bit digital-to-analog conversion
• Data Transmission: Digital interference-free communication

Communication Features

• Digital Protocol: Interference-free IO-Link V1.1 Class A communication
• Diagnostic Capabilities: Comprehensive system monitoring via IO-Link interface
• Status Indicators: LED diagnostic indicators for visual system status
• Configuration: Preconfigured plug & play operation
• Network Integration: Compatible with standard IO-Link master modules
• Real-Time Control: Fast response time with minimum 2.3 ms cycle time
• Multi-Channel Operation: Multiple analog output channels supported

Environmental Specifications

• Protection Class: IP65/IP67 rated housing
• Installation Environment: Harsh industrial conditions
• Connector Protection: M12 industrial-grade connection
• Environmental Resistance: Suitable for factory automation applications
• Field Installation: Direct field mounting capability

Standards and Compliance

• IO-Link Standard: V1.1 Class A protocol compliance
• Industrial Standards: Designed for industrial automation applications
• Protection Standards: IP65/IP67 environmental protection rating
• Quality Standards: Murrelektronik industrial quality and reliability
• Communication Standards: Standard IO-Link communication protocol
• Connector Standards: M12 industrial connector specifications

Applications

• Industrial process control analog output systems
• Factory automation analog signal generation
• Machine control and monitoring applications
• IO-Link network analog output devices
• Industrial actuator control systems
• Multi-channel analog output applications

Benefits

• Enables precise multi-function analog output generation in IO-Link networks
• Provides interference-free digital communication with 16-bit resolution accuracy
• Offers robust IP65/IP67 protection for reliable operation in harsh industrial environments
• Supports plug & play installation with comprehensive diagnostic capabilities
• Simplifies system integration through digital communication and standard M12 connectivity
• Reduces wiring complexity and installation costs with digital IO-Link protocol

Download existing graphical data for this product:

• Product Specification Sheet
