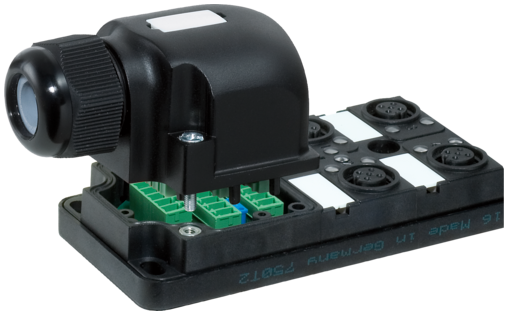

Murr MVP12 Distributed I/O block system, 5-pole, 4 x M12

Product Overview

The Murrelektronik MVP12 M12 Distribution System is a 4-port, 5-pole distribution module with plug cap and SPT (Spring Push-in Terminal) configuration designed for industrial field distribution applications. This system provides 4×M12 connections with advanced plug cap technology and spring terminal connections for reliable sensor and actuator connectivity in demanding industrial environments.

Key Features

• 4×M12 ports with 5-pole configuration
• Plug cap design with SPT (Spring Push-in Terminal) technology
• Spring push-in terminal connections for tool-free wiring
• Plastic flame-retardant housing construction
• IP67 protection when properly connected
• LED status indication for operational monitoring

Technical Specifications

• Model: MVP12 M12 Distribution System
• Article Number: 27767
• Configuration: 4×M12, 5-pole
• Connection Type: Plug cap with SPT (Spring Push-in Terminal)
• Housing Material: Plastic, flame-retardant
• Protection Rating: IP67 (inserted and tightened per EN 60529)
• Temperature Range: -20°C to +80°C

Electrical Characteristics

• Operating Voltage: 24V DC
• Operating Current per Contact: Maximum 4A
• Total Current: Maximum 2 × 8A (typical for MVP12 series)
• Signal per Port: Multiple signal capability
• Pin Configuration: PIN 1 (+), PIN 2 (NC/S2), PIN 3 (-), PIN 4 (NO/S1), PIN 5 (Earth)
• LED Indicators: Green (Power), Yellow (Signal Status)

Spring Push-in Terminal Features

• Tool-Free Connection: Spring push-in terminal technology eliminates need for tools
• Wire Insertion: Direct wire insertion into spring terminals
• Secure Connection: Spring mechanism ensures reliable electrical contact
• Wire Range: Compatible with standard industrial wire sizes
• Maintenance-Free: No retightening required after installation

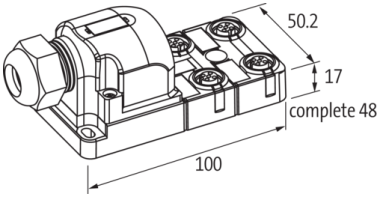

Physical Specifications

• Port Count: 4×M12 connections
• Pole Configuration: 5-pole per port
• Housing: Plastic, flame-retardant construction
• Mounting: Field-mountable distribution box design
• Plug Cap: Advanced plug cap design for enhanced protection

Distribution Features

• Multi-Port: 4×M12 connections for sensor/actuator distribution
• Plug Cap Technology: Enhanced protection and sealing
• SPT Terminals: Spring push-in terminals for easy wiring
• Signal Distribution: Multiple signal capability per port
• Status Monitoring: LED indicators for operational status

Installation Specifications

• Mounting: Field-mountable housing design
• Connection: M12 screw-threaded ports with plug cap system
• Wiring: Tool-free spring push-in terminal connections
• Sealing: Fully potted construction with plug cap protection
• Assembly: Designed for quick and easy field installation

Applications

• Industrial sensor and actuator distribution
• Field-level signal and power distribution
• Manufacturing automation systems
• Process control field connections
• Machine control sensor networks
• Industrial I/O distribution applications

Spring Terminal Benefits

• Tool-Free Installation: No screwdrivers or tools required
• Time Savings: Faster installation compared to screw terminals
• Reliable Connection: Spring mechanism ensures consistent contact
• Maintenance-Free: No periodic retightening required
• User-Friendly: Simple wire insertion and removal

Plug Cap Advantages

• Enhanced Protection: Additional sealing and protection layer
• Environmental Resistance: Superior protection against harsh conditions
• Easy Access: Removable cap for maintenance and inspection
• Secure Closure: Reliable cap retention system
• Professional Appearance: Clean, finished installation look

Standards and Compliance

• Protection Standard: IP67 per EN 60529
• Housing Material: Flame-retardant plastic construction
• Operating Environment: Industrial temperature range
• Quality: Murrelektronik industrial standards
• Reliability: Designed for demanding industrial applications

Benefits

• Simplifies field wiring with tool-free connections
• Provides reliable sensor and actuator distribution
• Offers enhanced protection with plug cap design
• Enables quick installation and maintenance
• Reduces installation time and complexity
• Provides professional finished appearance

Download existing graphical data for this product:

• Product Specification Sheet
