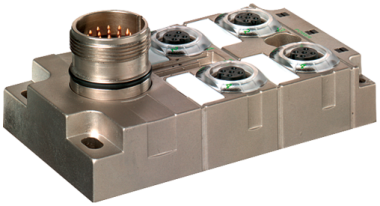

Murr MVP, metal, connector exit frontside, 4xM12, 5-pole

Product Overview
This rugged metal distribution module (SKU 8000-54520-0000000) enables reliable signal routing by combining four M12 5-pole outputs with a frontside M23 19-pole connector — complete with built-in LEDs for PNP digital signaling at 24 V DC. Designed for harsh industrial environments, it provides robust and easily separable system integration suited for automation tasks.

Key Features

· Four M12-5-pole outputs with centralized M23-19-pole connector
· Metal housing for enhanced mechanical and thermal durability
· Built-in LEDs indicate PNP digital status at 24 V DC
· Modular design allows quick disconnection and reassembly

Technical Specifications

· Voltage Rating: 24 V DC
· Current Rating: Max. 4 A per contact; total current up to 7.5 A
· Ingress Protection: IP65, IP67, and IP68 rated
· Housing: Zinc die-cast, matte nickel-plated finish
· Operating Temperature: –25…+90 °C

Applications

· Industrial I/O distribution in automated systems
· Harsh-environment installations requiring robust connectors
· OEM and retrofit control installations with modular I/O needs
· Quick-disconnect signal distribution systems with LED diagnostics

Compliance and Standards

· LED-aided PNP signaling for real-time diagnostics
· RoHS compliant materials and construction
· Designed for high-strain industrial environments with top IP ratings
