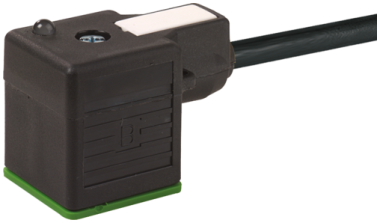

Murr MSUD Valve plug with cable, LED, form A (18mm), 24VDC, 2m

Product Overview

The Murrelektronik MSUD valve plug Form A provides reliable power connection for solenoid valves and pneumatic applications. This 18mm connector features integrated LED status indication and suppression circuitry with a 2-meter PUR cable, delivering robust connectivity for 24V AC/DC valve control applications with visual feedback.

Key Features

• MSUD Form A 18mm valve plug connector
• Integrated LED indicator for visual status monitoring
• Built-in suppression circuitry for valve protection
• 2-meter PUR cable with drag chain compatibility
• 3x0.75mm² conductors for reliable power transmission
• UL/CSA certification for North American markets
• Black cable jacket for professional appearance

Technical Specifications

• Article Number: 7000-18001-6360200

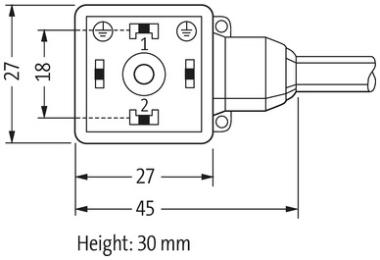

• Connector Type: MSUD valve plug Form A, 18mm
• Cable Length: 2 meters (6.6 feet)
• Conductor Specification: 3x0.75mm² PUR cable
• Voltage Rating: 24V AC ±20% / DC ±25%

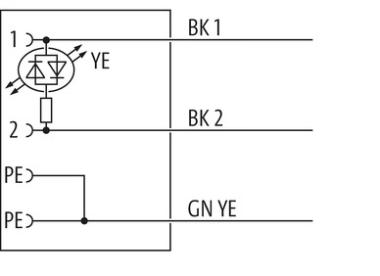

• LED Function: Status indication with integrated suppression
• Cable Type: PUR (Polyurethane), black with drag chain compatibility
• Operating Temperature: Standard industrial temperature range
• Wire Gauge: 3 x 0.75mm² (approximately #18 AWG)

Applications

• Solenoid valve power connections with status monitoring
• Pneumatic system control with visual feedback requirements
• Industrial automation valve networks requiring LED indication
• Process control applications with valve status verification
• Manufacturing equipment requiring reliable valve connectivity
• Automated systems with diagnostic requirements

Standards and Compliance

• Certification: UL/CSA approved for industrial applications
• Quality Standards: German engineering and manufacturing
• Environmental Protection: Industrial-grade environmental protection

Benefits

• Pre-assembled construction eliminates field termination errors
• LED indicator provides immediate visual status feedback
• Integrated suppression protects valve coils and control circuits
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
