Product Overview
The Murrelektronik MSUD valve plug is a pre-assembled cordset designed for industrial valve and solenoid connectivity applications without integrated electronic components. This Form BI (11mm) valve connector features a 10-meter PUR cable terminated with open-ended wires for direct connection to control systems. Rated for 0-230V AC/DC applications with drag chain capability and PE connection, it provides reliable valve control in demanding industrial automation environments.
Key Features
Technical Specifications
Applications
Standards and Compliance
Benefits

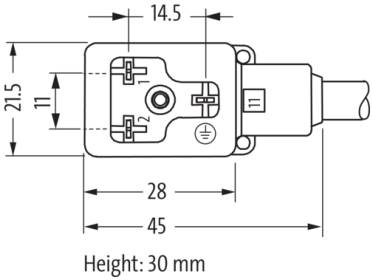

Download existing graphical data for this product:
IP Rating / Detailed | IP67 |
Tariff | 85444290 |
GTIN | 4048880000000.0 |
ETIM | EC001855 |
Temperature: Operating Min | -25.0°C |
Temperature: Operating Max | 85.0°C |
Thread | M3 |
Tightening Torque | 0 |
Nominal Voltage | 300.0 |
Interface | yellow |
Mounting Type | inserted |
Current load capacity | to |
Current Rating / Rated Current | 4.0 |
Packaging size / unit | 1 |
Material: Housing / Grip | PBT |
Material: Jacket / Cover Nut | PUR |
Material: Wire Insulation | PP |
Material: Gasket | PUR |
Material: Screw / connection | Steel |
Cable Type | 3.0 |
Communication | MSUD |
Stranding | 1 |
Wire arrangement | black |
Bending radius (fixed) | 5.0 |
Bending radius (dynamic) | 10.0 |
Operating Voltage Min | 18.0 |
Voltage Frequency Range | withstand |
Operating Voltage Max | 30.0 |
