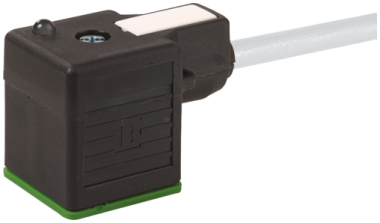

Murr MSUD valve plug A-18mm with cable, grey, 1m

Product Overview

The Murrelektronik MSUD valve plug Form A provides reliable power connection for solenoid valves and pneumatic applications with enhanced cable protection. This 18mm connector features integrated LED status indication and suppression circuitry with a 1-meter oxidized PVC cable, delivering robust connectivity for 24V AC/DC valve control applications with superior cable durability and visual feedback.

Key Features

• MSUD Form A 18mm valve plug connector
• Integrated LED indicator for visual status monitoring
• Built-in suppression circuitry for valve protection
• 1-meter oxidized PVC cable for enhanced durability
• 3x0.75mm² conductors for reliable power transmission
• Gray cable jacket for professional appearance

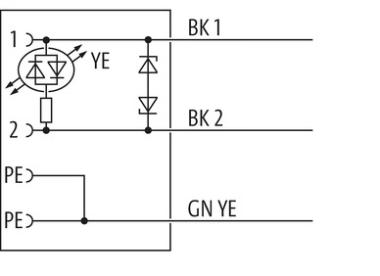

• Bridged PE (protective earth) connection

Technical Specifications

• Article Number: 7000-18021-2260100

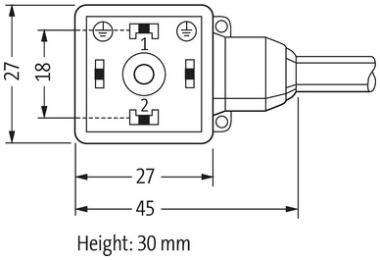

• Connector Type: MSUD valve plug Form A, 18mm
• Cable Length: 1 meter (3.3 feet)
• Conductor Specification: 3x0.75mm² oxidized PVC cable
• Voltage Rating: 24V AC ±20% / DC ±25%
• LED Function: Status indication with integrated suppression
• Cable Type: Oxidized PVC (Polyvinyl Chloride), gray
• Operating Temperature: Standard industrial temperature range
• Wire Gauge: 3 x 0.75mm² (approximately #18 AWG)

Applications

• Solenoid valve power connections requiring enhanced cable durability
• Pneumatic system control with visual feedback requirements
• Industrial automation valve networks in harsh environments
• Process control applications with valve status verification
• Manufacturing equipment requiring reliable valve connectivity with superior cable protection
• Applications requiring short cable runs with enhanced durability

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: Industrial-grade environmental protection with enhanced cable treatment
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• Pre-assembled construction eliminates field termination errors
• LED indicator provides immediate visual status feedback
• Integrated suppression protects valve coils and control circuits
• Oxidized PVC cable treatment provides enhanced durability and chemical resistance
• Compact 1-meter length ideal for short cable runs and space-constrained installations
• Gray cable color enhances professional appearance and cable identification
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
