Murr MSDD Modlink double frame, metal, black

Product Overview

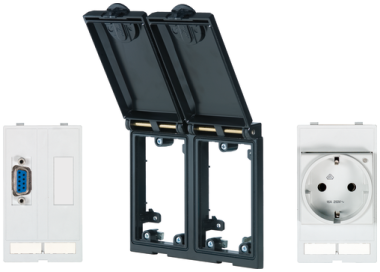

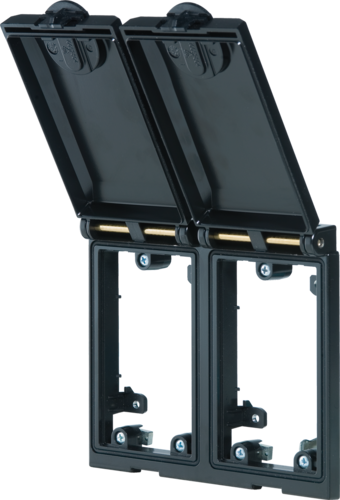

The MODLINK MSDD FRAME DBL METAL provides a robust mounting solution for double insert configurations in industrial front panel interface applications. This professional-grade metal frame accommodates two MODLINK MSDD inserts in a single unit, offering enhanced functionality while maintaining the compact footprint and IP65 protection when properly sealed with compatible inserts.

Key Features

• Double insert metal frame configuration
• Professional metal construction and finish
• Integrated spring-loaded lid mechanism
• 30° angle lid opening for easy access
• Lockable with 3mm double bit key
• Accommodates two independent insert modules
• Industrial-grade durability and reliability

Technical Specifications

• Series: MODLINK MSDD Front Panel Interfaces
• Category: Frame
• Article Number: 4000-68122-0000000
• Frame Type: Double insert metal frame
• Material: Metal with industrial-grade finish
• Configuration: Two-gang frame
• Insert Capacity: Two MODLINK MSDD inserts

Construction Details

• Frame Material: Industrial-grade metal construction
• Lid Material: Metal with matching finish
• Surface Treatment: Professional industrial coating
• Lid Mechanism: Integrated spring system
• Opening Angle: 30° automatic lid positioning
• Locking System: 3mm double bit key closure

Installation Details

• Panel Mounting: Front panel installation
• Insert Compatibility: Compatible with all MODLINK MSDD insert types
• Protection Rating: IP65 when properly sealed with inserts
• Assembly: Ready for dual insert installation
• Mounting Hardware: Included mounting components

Environmental Specifications

• Construction: Industrial-grade metal housing
• Durability: Designed for demanding industrial environments
• Protection: Weather and contamination resistant
• Operating Conditions: Standard industrial temperature ranges
• Reliability: Long-term operational stability

Applications

• Industrial control cabinet front panel interfaces requiring dual functionality
• Machine control access panels with multiple connection types
• Automation equipment operator interfaces with combined power and data
• Manufacturing equipment service panels with dual connectivity
• Process control diagnostic access with multiple interface types
• Field service and maintenance interfaces requiring versatile connectivity
• Equipment panels requiring both power and data connections

Standards and Compliance

• Protection Rating: IP65 capability with proper insert installation
• Material Standards: Industrial-grade metal construction
• Quality Standards: Murrelektronik industrial quality standards
• Safety Compliance: Industrial automation safety requirements
• Durability Standards: Long-term industrial application compliance

Compatibility

• Compatible with all MODLINK MSDD insert combinations
• Power inserts, data inserts, and combination inserts
• Mixed insert configurations (power + data combinations)
• Various connector configurations and international standards
• Custom laser engraving and labeling options
• Industrial control and automation systems

Design Features

• Dual Functionality: Accommodates two different insert types simultaneously
• Service Access: Convenient access without opening cabinet door
• Labeling Surface: Extended area for system labels, barcodes, and warnings
• Logo Area: Prominent position for company branding
• Maintenance Friendly: Easy insert replacement and servicing
• Professional Appearance: Industrial-grade metal finish
