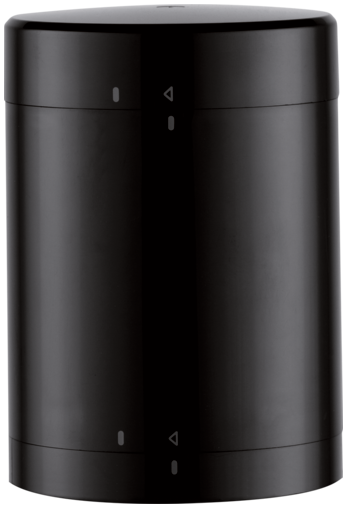

Murr Modlight70 Pro connecting module tube mounting, plastic

Product Overview

The MODLIGHT70 PRO CONNECTING MODULE provides the foundational base for tube mounting configurations in professional signal tower installations. This 24V DC connection module features black plastic housing with IP65 protection rating, designed to serve as the primary electrical connection point for Modlight70 Pro LED modules in industrial automation and status indication applications.

Key Features

• Basic connection module for tube mounting applications
• 24V DC input voltage (21.6...26.4 V DC operating range)
• IP65 protection rating for industrial environments
• Black plastic housing for professional appearance
• Wide temperature range operation (-30°C to +60°C)
• Compatible with connection cables available separately

Technical Specifications

• Series: Modlight70 Pro Connection Modules
• Category: Signal Tower Connection Module
• Article Number: 4000-76070-1100003
• Input Voltage: 24V DC (21.6...26.4 V DC)
• Protection Rating: IP65 inserted and tightened
• Housing: Black plastic construction
• Mounting Type: Tube mounting configuration

Connection Characteristics

• Application: Basic connection module for signal towers
• Mounting Style: Tube mounting base configuration
• Electrical Input: 24V DC industrial voltage
• Connection System: Professional connection interface
• Cable Integration: Compatible with Modlight connection cables
• Module Interface: Direct connection to LED modules

Installation Details

• Mounting: Tube mounting configuration for industrial installations
• Protection: IP65 inserted and tightened (EN 60529)
• Temperature Range: -30°C to +60°C operating range
• Housing Material: Black plastic for durability
• Assembly: Foundation module for signal tower construction

Environmental Specifications

• Protection Rating: IP65 when properly inserted and tightened
• Operating Temperature: -30°C to +60°C
• Housing Material: Black plastic construction
• Durability: Designed for demanding industrial environments
• Standards Compliance: EN 60529 protection standard

Applications

• Industrial signal tower tube mounting installations
• Manufacturing equipment status indication systems
• Automation system visual feedback solutions
• Process control signal tower foundations
• Machine status indication mounting base
• Safety system signal tower installations
• Equipment diagnostic status displays

Standards and Compliance

• Protection Standards: IP65 (EN 60529)
• Electrical Standards: 24V DC industrial voltage compliance
• Quality Standards: Murrelektronik industrial quality standards
• Safety Compliance: Industrial automation safety requirements
• Environmental Standards: Industrial temperature range compliance

Compatibility

• Compatible with Modlight70 Pro LED modules
• Modlight70 Pro connection cables (available separately)
• Industrial 24V DC power systems
• Signal tower mounting accessories
• Professional lighting control systems
• Automation equipment integration

Design Features

• Modular Design: Foundation module for building custom signal towers
• Professional Housing: Black plastic construction for industrial aesthetics
• Robust Protection: IP65 rating for harsh environmental conditions
• Wide Temperature Range: -30°C to +60°C operation capability
• Easy Integration: Compatible with full Modlight70 Pro system
• Flexible Installation: Tube mounting for versatile positioning

Connection Requirements

• Connection cables are available separately in the online shop
• Compatible with various Modlight70 Pro connection cable options
• Professional wiring integration for industrial applications
• Secure electrical connections for reliable operation
