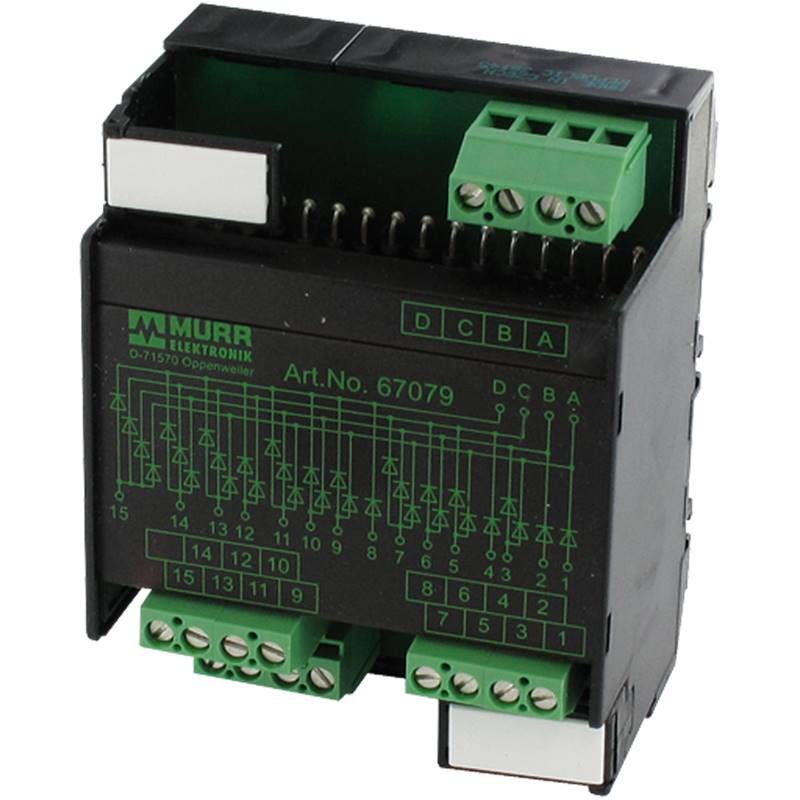

Murr MKS/BCD-1300 Diode module, mounting rail, screw

Product Overview

The Murrelektronik MKS/BCD-1300 is a specialized diode module designed for BCD (Binary Coded Decimal) logic applications in industrial control systems. This module provides diode logic functionality for converting hexadecimal to binary coded decimal format, essential for interfacing between different numbering systems in automation applications. Featuring universal diodes rated at 1300V and 1A, it offers reliable signal conversion and logic processing with mounting rail compatibility and screw-type terminals.

Key Features

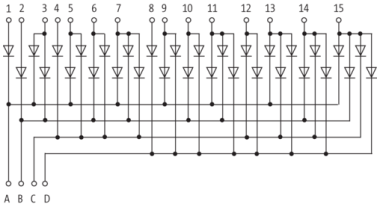

• BCD diode logic for hexadecimal to binary conversion
• Universal diodes rated at 1300V, 1A
• Mounting rail compatibility with screw-type terminals
• Diode logic functionality for digital signal processing
• Industrial-grade construction for control cabinet applications
• MKS series modular design for system integration
• Reliable conversion between numbering systems
• Suitable for automation and control applications

Technical Specifications

• Model: MKS/BCD-1300 Diode Module
• Article Number: 67079
• Diode Rating: 1300V, 1A (universal diodes)
• Function: BCD logic for hexadecimal to binary conversion
• Terminal Type: Screw-type terminals
• Mounting: Mounting rail / DIN-rail compatible
• Series: MKS control module series

Connection Specifications

• Terminal Type: Screw-type terminal connections
• Mounting Method: Mounting rail system
• Voltage Rating: 1300V diode capability
• Current Rating: 1A per diode
• Logic Function: Binary Coded Decimal conversion
• Interface: Industrial control system compatible

Applications

• BCD logic conversion in industrial automation systems
• Hexadecimal to binary signal conversion applications
• Control system interfacing between different numbering systems
• Digital logic processing in manufacturing equipment
• PLC and control system integration requiring BCD functionality
• Industrial control cabinet logic conversion modules

Standards and Compliance

• Industrial Standards: Control module standards for industrial environments
• Electrical Standards: High-voltage diode specifications (1300V rating)
• Quality Standards: German engineering and manufacturing standards
• Installation Standards: DIN-rail and mounting rail compatibility

Benefits

• Specialized BCD logic functionality for numbering system conversion
• High-voltage diode rating (1300V) ensures reliable operation
• Screw-type terminals provide secure and maintainable connections
• Mounting rail design enables easy integration into control systems
• MKS series modularity allows system expansion and configuration
• Industrial-grade construction ensures long-term reliability
