Murr Miro TR Opto-coupler, screw, 24VDC, 2A

Product Overview

The Murrelektronik MIRO TR 48VDC SK is a high-performance transistor-based optocoupler module designed for versatile DC switching applications with wide voltage range compatibility. This module provides reliable DC load switching up to 2A with flexible input range from 10-48VDC and output range from 5-48VDC. The device features ultra-compact 6.2mm width design with screw terminal connections for space-efficient control cabinet installations requiring galvanic isolation.

Key Features

• Transistor-based optocoupler with wide voltage range flexibility
• High switching capacity: 2A continuous output current
• Wide input range: 10-48VDC for versatile applications
• Flexible output range: 5-48VDC switching capability
• Ultra-compact 6.2mm width for space-efficient installation
• Screw terminal connections for secure wiring
• DIN rail mounting (EN 60715) for standard installation
• Galvanic isolation between input and output circuits

Technical Specifications

• Model: MIRO TR 48VDC SK Optocoupler Module
• Article Number: 52501
• Input Voltage Range: 10-48VDC
• Output Voltage Range: 5-48VDC
• Output Current: 2A continuous maximum
• Input Current: 7mA DC nominal
• Module Width: 6.2mm
• Connection Type: Screw terminals
• Switching Element: Photo-transistor

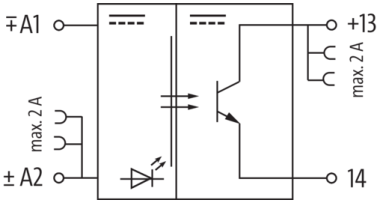

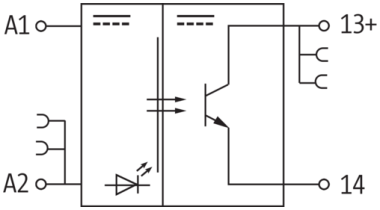

Electrical Characteristics

• Control Input Range: 10-48VDC wide range compatibility
• Load Output Range: 5-48VDC flexible switching
• Switching Technology: Photo-transistor optocoupler
• Output Type: Transistor switching output
• Maximum Residual Voltage: 0.3VDC (output switched)
• Isolation Type: Galvanic isolation between circuits

Mechanical Specifications

• Housing Width: 6.2mm ultra-compact design
• Height: 78mm standard module height
• Mounting: DIN rail mounting (EN 60715)
• Connection Type: Screw terminals for secure connections
• Installation: Control cabinet and panel mounting

Standards and Compliance

• Mounting Standards: EN 60715 DIN rail compatibility
• Industrial Standards: Designed for industrial automation applications
• Safety Standards: Galvanic isolation for electrical safety
• Quality Standards: Murrelektronik industrial quality and reliability
• Environmental Standards: Industrial environmental protection ratings

Applications

• Wide-range DC motor control and switching
• Variable voltage industrial control systems
• Multi-voltage equipment interface applications
• Process control with varying voltage requirements
• Industrial automation with diverse voltage levels
• Flexible DC switching and isolation applications

Installation Features

• Ultra-Compact Design: 6.2mm width maximizes cabinet space
• DIN Rail Mounting: Standard EN 60715 industrial mounting
• Screw Terminals: Secure and reliable wiring connections
• Flexible Integration: Wide voltage range compatibility
• Professional Installation: Standard industrial module format

Voltage Range Benefits

• Input Flexibility: 10-48VDC range accommodates diverse control systems
• Output Versatility: 5-48VDC switching for various load requirements
• System Compatibility: Wide range operation reduces inventory requirements
• Application Flexibility: Single module for multiple voltage applications
• Cost Efficiency: Universal voltage compatibility reduces component variety

Benefits

• Provides versatile DC switching with wide 10-48VDC input and 5-48VDC output range for diverse applications
• Offers high-current 2A switching capability in ultra-compact 6.2mm width design
• Features flexible voltage range operation reducing the need for multiple different optocoupler variants
• Ensures reliable galvanic isolation between control and load circuits for enhanced system safety
• Supports standard DIN rail mounting with secure screw terminals for professional installation

Download existing graphical data for this product:

• Product Specification Sheet
