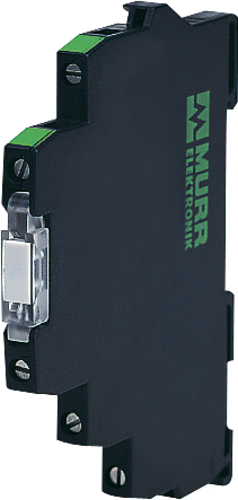

Murr Miro 6.2 Timer on-delay, (max)3-300 seconds, screw

Product Overview

The Murrelektronik Miro 6.2 Timer On-delay is a precision timing relay module designed for industrial control applications requiring accurate time delays. This compact module provides switch-on delay functionality with an adjustable timing range from 3 to 300 seconds, featuring relay output switching capability of up to 6A at 250 VAC/DC. The device incorporates safe separation per EN 60947-1 standards and utilizes secure screw terminal connections for reliable industrial automation applications.

Key Features

• On-delay timing function with adjustable range 3-300 seconds
• High-current relay output: 6A at 250 VAC/DC
• Precision timing control for industrial applications
• Safe separation compliance (EN 60947-1)
• Compact 6.2mm width for space-efficient installation
• DIN rail mounting capability for control cabinet integration
• Screw terminal connections for secure wiring
• Industrial-grade construction for reliable operation

Technical Specifications

• Model: Miro 6.2 Timer On-delay
• Article Number: 52301
• Timing Range: 3-300 seconds (switch-on delay)
• Input Voltage: 24 VDC nominal
• Output Rating: 250 VAC/DC maximum
• Output Current: 6A maximum
• Module Width: 6.2mm
• Connection Type: Screw terminals

Electrical Characteristics

• Control Input: 24 VDC operation

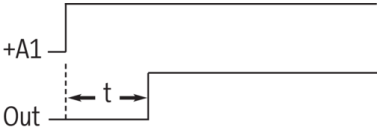

• Timer Function: On-delay (switch-on delay)
• Timing Adjustment: 3-300 seconds range
• Output Type: Relay contact switching
• Switching Voltage: Up to 250 VAC/DC
• Switching Current: Up to 6A continuous
• Contact Configuration: Single pole switching contact

Timing Performance

• Delay Type: On-delay (switch-on delay)
• Timing Range: 3 seconds to 300 seconds (5 minutes)
• Timing Accuracy: Industrial-grade precision timing
• Adjustment Method: Continuous adjustment within range
• Reset Function: Automatic reset capability
• Response Time: Fast response timing control

Mechanical Specifications

• Housing Width: 6.2mm compact design
• Mounting Method: DIN rail mounting capability
• Connection Type: Screw terminals for secure connections
• Housing Material: Industrial-grade construction
• Installation: Control cabinet and panel mounting
• Terminal Access: Easy-access screw terminals

Environmental Specifications

• Operating Environment: Industrial control cabinet conditions
• Safety Standards: EN 60947-1 safe separation compliance
• Protection Rating: Industrial-grade environmental protection
• Temperature Range: Standard industrial operating temperatures
• Installation Location: Control cabinet and automation panels

Safety Features

• Safe Separation: EN 60947-1 compliance for electrical safety
• Isolation: Input/output galvanic separation
• Protection: Industrial-grade electrical protection
• Standards Compliance: Industrial automation safety standards
• Reliability: Industrial-grade components for long-term operation

Standards and Compliance

• Safety Standards: EN 60947-1 safe separation compliance
• Industrial Standards: Designed for industrial automation applications
• DIN Rail Standards: Standard DIN rail mounting compatibility
• Quality Standards: Murrelektronik industrial quality and reliability
• Environmental Standards: Industrial environmental protection ratings

Applications

• Industrial process control timing applications
• Motor starting delay and sequencing
• Lighting control systems with delayed activation
• Pump and compressor starting delay systems
• Safety circuit timing and interlocking
• Production line sequencing and timing control

Installation Features

• Compact Design: 6.2mm width for dense control cabinet layouts
• DIN Rail Mounting: Standard industrial mounting system
• Screw Terminals: Secure and reliable wiring connections
• Easy Configuration: Adjustable timing range selection
• Professional Integration: Standard industrial module format

Timing Control Benefits

• Precision Timing: Accurate 3-300 second delay range for precise control
• High Current Capability: 6A switching capacity for demanding applications
• Compact Installation: 6.2mm width maximizes control cabinet space efficiency
• Industrial Reliability: EN 60947-1 safe separation for enhanced system safety
• Flexible Timing: Wide adjustment range accommodates diverse timing requirements

Design Advantages

• Space Efficiency: Ultra-compact 6.2mm width design
• High Performance: 6A switching capability in minimal space
• Professional Installation: Standard DIN rail mounting system
• Secure Connections: Industrial-grade screw terminals
• Standards Compliance: EN 60947-1 safe separation requirements

Benefits

• Provides precise on-delay timing control from 3 to 300 seconds for diverse industrial applications
• Offers high-current 6A relay switching capability for demanding control system requirements
• Features ultra-compact 6.2mm width design for maximum control cabinet space utilization
• Ensures safe operation with EN 60947-1 compliant electrical separation standards
• Supports reliable industrial automation with secure screw terminal connections and DIN rail mounting
• Simplifies timing control implementation with adjustable delay range and professional-grade construction
