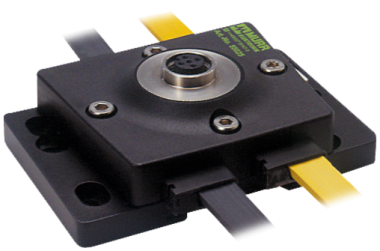

Murr MASI67, Converter 2x profile cable to M12 female

Product Overview

The Murrelektronik MASI67 Installation Technology is a converter that transforms 2x profile cable connections to M12 female connectors. This installation technology module is designed for mechanical engineering applications, providing optimized connection solutions with potted construction for extreme resistance to mechanical influences such as vibration and shocks.

Key Features

• Converter from 2x profile cable to M12 female connections
• Potted construction for extreme mechanical resistance
• IP67 protection rating for industrial environments
• DIN-rail mountable or screw fixing installation options
• AS-Interface and power supply connectivity
• Flat cable multiple insertion capability

Technical Specifications

• Model: MASI67 Installation Technology
• Article Number: 55037
• Connection Type: 2x profile cable to M12 female converter
• Protection Rating: IP67 sealed construction
• Operating Voltage: Maximum 36V DC
• Total Current: Maximum 4 A
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +80°C

Electrical Characteristics

• Pin 1: AS-Interface (brown)
• Pin 2: 0V (blue)
• Pin 3: AS-Interface - (blue)
• Pin 4: 24V (brown)
• Pin 5: Not connected
• Test Isolation Voltage: AS-Interface/Power 200V (EN 60664-1)
• Maximum Operating Voltage: 36V DC

Installation Specifications

• Mounting Method: DIN-rail mountable (EN 60715) or screw fixing

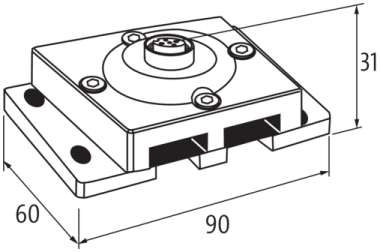

• Dimensions (H x W x D): 90 x 74 x 30.5 mm
• Housing Construction: Fully potted for mechanical protection
• Installation Type: Profile cable to M12 female converter
• Connection Access: Connection cables available under "Connection Technology"

Applications

• Mechanical engineering installation systems
• AS-Interface network connections
• Industrial valve control applications
• Profile cable to M12 connector conversion
• Applications requiring vibration and shock resistance
• Decentralized installation technology systems

Standards and Compliance

• Protection Standards: IP67 environmental protection
• Isolation Standards: EN 60664-1 compliance
• Mounting Standards: DIN-rail EN 60715 compatibility
• Quality Standards: Murrelektronik industrial automation quality
• Temperature Standards: Industrial operating temperature range

Benefits

• Reduces valve installation complexity by up to 50%
• Extreme resistance to vibration and mechanical shocks
• Sealed construction meets industrial environmental requirements
• Flexible installation with DIN-rail or screw mounting options
• Multiple flat cable insertion capability for service flexibility
• Optimized for mechanical engineering applications
