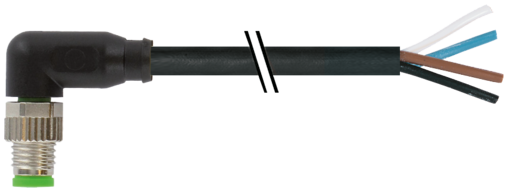

Murr M8 Male 90° with cable, M8, 4-pole, 3m

Product Overview

The Murrelektronik M8 male 90° connector cable is a pre-assembled cordset designed for space-constrained industrial signal applications. This 3-meter cable features a 90° angled M8 male connector with A-coding and 4-pole configuration, terminated with open-ended wires for flexible system integration. Constructed with PUR (polyurethane) jacket and rated for UL/CSA applications with drag chain capability, it provides reliable signal transmission in tight spaces where straight connectors cannot be accommodated.

Key Features

• M8 male 90° angled connector with A-coding (4-pole configuration)
• 3-meter cable length with open-ended wire termination
• PUR jacket with 4x0.25mm² conductors for superior flexibility
• UL/CSA certification for North American applications
• Drag chain capability for dynamic applications
• Cable sleeves included for enhanced protection
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw

Technical Specifications

• Model: M8 male 90° A-cod. with cable
• Article Number: 7000-08031-6310300
• Connector Type: M8 male, 90° angled
• Coding: A-coded

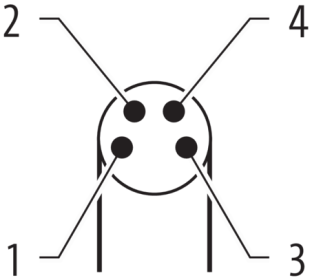

• Pole Configuration: 4-pole
• Cable Length: 3 meters
• Conductor Specification: 4x0.25mm² (#24AWG)

Connection Specifications

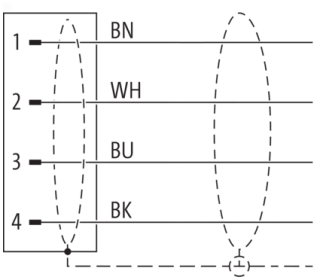

• Connector End: M8 male 90° angled connector, A-coded
• Wire End: Open-ended flying leads with cable sleeves
• Cable Jacket: PUR (Polyurethane) black
• Conductor Size: 4x0.25mm² (4x#24AWG)
• Drag Chain Rating: UL/CSA + drag chain approved
• Connector Series: M8 Lite with plastic hexagonal screw
• Protection Rating: IP65/IP66K/IP67 industrial protection

Applications

• Space-constrained installations requiring 90° cable exit
• Panel-mounted sensors and actuators with limited clearance
• Machine control systems where straight connectors interfere with design
• Robotic applications requiring angled cable routing
• Industrial automation in compact equipment designs
• Process control instrumentation in tight mounting configurations

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for demanding automation applications

Benefits

• 90° angled connector design saves space in tight installations
• Pre-assembled construction eliminates field termination requirements
• PUR jacket offers superior flexibility and chemical resistance
• 4-pole configuration supports additional signal requirements
• Drag chain capability enables use in dynamic applications
• A-coding ensures proper mating and prevents mis-connection
• Cable sleeves provide enhanced protection at wire termination

Download existing graphical data for this product:

• Product Specification Sheet
