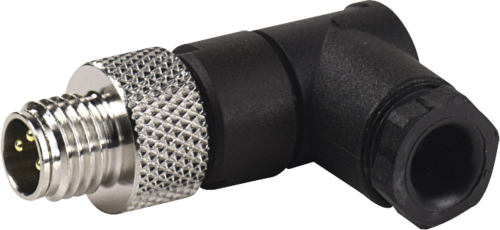

Murr M8 Male 90°, field wireable (solder pins), 3-pole

Product Overview

The Murrelektronik M8 male connector is a field-wireable connector designed for on-site termination of industrial sensor and automation cables using solder pin technology. This 90-degree M8 male connector features A-coding and 3-pole configuration with solder pins, allowing for permanent field installation with superior electrical connection reliability. Designed for industrial automation applications, it provides secure connections for wire cross-sections up to 0.25mm² with IP67 protection rating.

Key Features

• M8 male 90-degree connector with A-coding (3-pole configuration)
• Solder pin technology for permanent, high-reliability connections
• Field-wireable design for on-site installation flexibility
• Accepts wire cross-sections up to 0.25mm²
• Cable diameter range: 3.5 to 5mm
• 90-degree angled design for space-saving installations
• Die-cast zinc construction for enhanced durability
• Hand-assembled termination capability
• Professional-grade connector design

Technical Specifications

• Model: M8 male 90° field-wireable (solder pins)
• Article Number: 7000-08441-0000000
• Connector Type: M8 male, 90-degree angled
• Coding: A-coded
• Pole Configuration: 3-pole
• Connection Technology: Solder pins
• Wire Cross Section: Maximum 0.25mm² (#24 AWG)
• Cable Diameter Range: 3.5 to 5mm

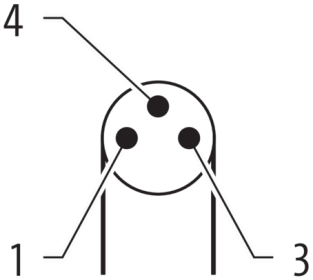

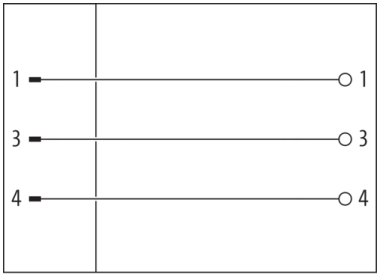

Connection Specifications

• Connector End: M8 male 90-degree connector, A-coded
• Termination Method: Solder pins for permanent connection
• Wire Cross Section: Maximum 0.25mm² (conductor diameter optimized for solder)
• Cable Sealing Range: 3.5 to 5mm diameter
• Voltage Rating: 60V maximum
• Current Rating: 4A maximum per contact
• Protection Rating: IP67
• Contact Material: High-quality metal with solder-friendly surface
• Housing Material: Die-cast construction

Applications

• Permanent field installation of sensor connections in confined spaces
• Industrial automation systems requiring reliable on-site termination
• Machine control systems with space constraints and custom cable lengths
• Process control instrumentation requiring angled connections
• Factory floor installations where solder connections are preferred
• Retrofit applications requiring permanent, high-reliability connections

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for demanding automation applications
• Protection Standards: IP67 environmental protection
• Electrical Standards: 60V voltage rating with 4A current capacity
• Material Standards: Die-cast construction for industrial durability

Benefits

• Solder pin technology provides superior electrical connection reliability
• Field-wireable design reduces inventory requirements for pre-made cables
• 90-degree connector design saves space in confined installations
• Permanent connection method eliminates maintenance concerns
• A-coding ensures proper mating and prevents mis-connection
• IP67 protection rating enables use in demanding industrial environments
• Professional termination capability for critical applications
• Enhanced durability compared to mechanical connection methods
• Suitable for applications requiring long-term connection stability
