Murr M8 male 0°, A-code with cable, 3-pole, black, 15m

Product Overview

The Murrelektronik M8 male connector cable is a pre-assembled cordset designed for industrial signal applications. This 15-meter cable features a straight M8 male connector with A-coding and 3-pole configuration, terminated with open-ended wires for flexible system integration. Constructed with PVC jacket and rated for UL/CSA applications, it provides reliable signal transmission in industrial automation and sensor connectivity applications with IP65/IP67 protection rating.

Key Features

• M8 male straight connector with A-coding (3-pole configuration)
• 15-meter cable length with open-ended wire termination
• PVC jacket with 3x0.25mm² conductors
• UL/CSA certification for North American applications
• IP65/IP66K/IP67 protection rating for industrial environments
• Zinc die-casting connector housing with save-cover coating
• Cable sleeves included for enhanced protection
• 50VAC/60VDC voltage rating for signal applications

Technical Specifications

• Model: M8 male 0° A-cod. with cable
• Article Number: 7000-08001-6101500
• Connector Type: M8 male, straight (0°)
• Coding: A-coded

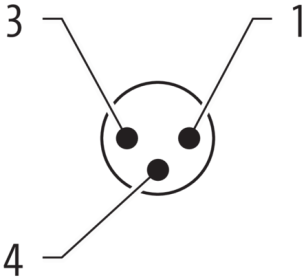

• Pole Configuration: 3-pole
• Cable Length: 15 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

Connection Specifications

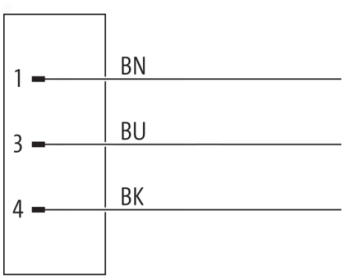

• Connector End: M8 male straight connector, A-coded
• Wire End: Open-ended flying leads with cable sleeves
• Voltage Rating: 50VAC max. / 60VDC max.
• Protection Rating: IP65/IP66K/IP67
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Cable Jacket: PVC (Polyvinyl Chloride)
• Housing Material: Zinc die-casting with save-cover coating

Applications

• Industrial sensor and actuator connectivity
• Signal transmission in automation systems
• Machine control and monitoring applications
• Factory floor sensor interfacing
• Process control instrumentation connections
• Industrial communication and control networks

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Voltage Standards: 50VAC/60VDC rated for signal applications
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for industrial automation applications

Benefits

• Pre-assembled construction eliminates field termination requirements
• 15-meter length provides flexibility for extended reach applications
• A-coding ensures proper mating and prevents mis-connection
• PVC jacket offers good resistance to chemicals and oils
• Open-ended wires allow direct connection to control systems
• UL/CSA certification ensures compliance with North American standards
• IP67 protection rating enables use in harsh industrial environments
