Murr M8 female 0° with cable, straight, 4-pole, 15m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications. This 15-meter cable features a straight M8 female connector with A-coding and 4-pole configuration, terminated with open-ended wires for direct connection to control systems. Constructed with PVC jacket and rated for UL/CSA applications, it provides reliable signal transmission in industrial automation environments with IP65/IP66K/IP67 protection rating.

Key Features

• M8 female straight connector with A-coding (4-pole configuration)
• 15-meter cable length with open-ended wire termination
• PVC jacket with 4x0.25mm² conductors for standard industrial applications
• UL/CSA certification for North American applications
• Die-cast zinc coupling nut with nickel plating for enhanced durability
• IP65/IP66K/IP67 protection rating for industrial environments
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Silicone-free, CFC-free, cadmium-free, and lead-free construction
• Gold-plated contacts for optimum conductivity
• Vibration-resistant union nut with vibration protection

Technical Specifications

• Model: MSFL0-T611_15.0
• Article Number: 7000-08061-6111500
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

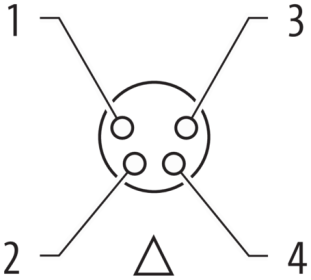

• Pole Configuration: 4-pole
• Cable Length: 15 meters
• Weight: 0.526 kg
• Country of Origin: Czech Republic

Connection Specifications

• Connector End: M8 female straight connector, A-coded
• Wire End: Open-ended flying leads with cable sleeves (20mm stripping length)
• Thread: M8 x 1mm with 0.4 Nm tightening torque
• Voltage Rating: 50VAC/60VDC maximum, 300VAC nominal
• Current Rating: 4A maximum per contact
• Protection Rating: IP65/IP66K/IP67
• Conductor Size: 4x0.25mm² (#24AWG) stranded copper wire
• Cable Jacket: PVC (Polyvinyl Chloride), 4.8mm outer diameter

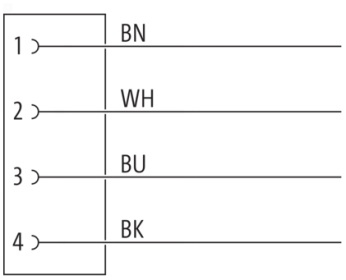

• Wire Colors: Brown, black, blue, white
• Contact Material: Copper alloy with gold plating
• Coupling Nut: Die-cast zinc with nickel plating

Environmental Specifications

• Operating Temperature: -25°C to +85°C
• Static Temperature Range: -30°C to +80°C
• Dynamic Temperature Range: -5°C to +80°C
• Bending Radius (Fixed): 5 × outer diameter (24mm)
• Bending Radius (Dynamic): 10 × outer diameter (48mm)
• Material Group: IEC 60664-1, Category I
• Pollution Degree: 3
• Rated Surge Voltage: 15kV

Applications

• Industrial sensor connectivity and interfacing
• Actuator control and monitoring applications
• Machine control and automation systems
• Process control instrumentation connections
• Factory floor sensor and device wiring
• Industrial communication networks requiring female connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Product Standard: DIN EN 61076-2-104 (M8)
• Flame Resistance: UL 1581 VW1/CSA FT1, IEC 60332-1-2
• Quality Standards: German engineering and manufacturing
• Material Properties: Good resistance to oils, chemicals, and gasoline

Benefits

• Pre-assembled construction eliminates field termination requirements
• Female connector design enables direct sensor connection
• 15-meter length provides extended reach for larger installations
• A-coding ensures proper mating and prevents mis-connection
• PVC jacket offers good resistance to chemicals and oils
• Die-cast zinc coupling nut with vibration protection provides mechanical strength
• Gold-plated contacts ensure optimum conductivity and reliability
• IP67 protection rating enables use in demanding industrial environments
• 100% tested during manufacturing process for highest quality assurance

Download existing graphical data for this product:

• Product Specification Sheet
