Murr M8 female 0° with cable, straight, 4-pole, 10m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for demanding industrial signal applications. This 10-meter cable features a straight M8 female connector with A-coding and 4-pole configuration, terminated with open-ended wires for flexible system integration. Constructed with PUR (polyurethane) jacket and rated for UL/CSA applications with drag chain capability, it provides reliable signal transmission in dynamic industrial automation and sensor connectivity applications.

Key Features

• M8 female straight connector with A-coding (4-pole configuration)
• 10-meter cable length with open-ended wire termination
• PUR jacket with 4x0.34mm² conductors for superior flexibility
• UL/CSA certification for North American applications
• Drag chain capability for dynamic applications
• Cable sleeves included for enhanced protection
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw

Technical Specifications

• Model: M8 female 0° A-cod. with cable
• Article Number: 7000-08061-6341000
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

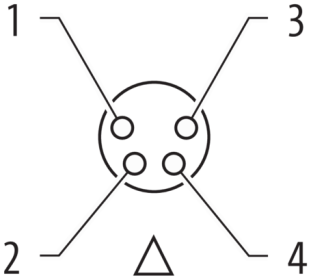

• Pole Configuration: 4-pole
• Cable Length: 10 meters
• Conductor Specification: 4x0.34mm² (#22AWG)

Connection Specifications

• Connector End: M8 female straight connector, A-coded

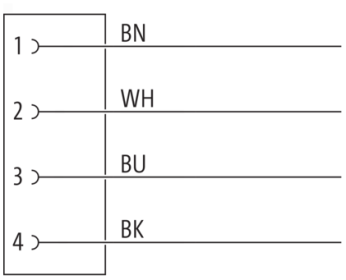

• Wire End: Open-ended flying leads with cable sleeves
• Cable Jacket: PUR (Polyurethane) black
• Conductor Size: 4x0.34mm² (4x#22AWG)
• Drag Chain Rating: UL/CSA + drag chain approved
• Connector Series: M8 Lite with plastic hexagonal screw
• Protection Rating: IP65/IP66K/IP67
• Voltage Rating: 50VAC/60VDC maximum
• Current Rating: 4A maximum per contact

Applications

• Dynamic industrial applications requiring cable movement
• Robotic systems and automated machinery
• Sensor connectivity in moving applications
• Machine control systems with drag chain requirements
• Industrial automation with flexible cable routing
• Process control instrumentation in dynamic environments

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for demanding automation applications
• Flexibility Standards: PUR jacket provides superior bend radius performance
• Protection Standards: IP65/IP66K/IP67 environmental protection

Benefits

• Pre-assembled construction eliminates field termination requirements
• PUR jacket offers superior flexibility and chemical resistance compared to PVC
• Drag chain capability enables use in dynamic and moving applications
• A-coding ensures proper mating and prevents mis-connection
• Open-ended wires allow direct connection to control systems
• UL/CSA certification ensures compliance with North American standards
• 10-meter length provides extended reach for larger installations
• Enhanced conductor size (0.34mm²) provides improved current capacity

Download existing graphical data for this product:

• Data Sheet
