Murr M8 female 0° with cable, straight, 3-pole, 5m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for demanding industrial sensor and actuator connectivity applications. This 5-meter cable features a straight M8 female connector with A-coding and 3-pole configuration, terminated with open-ended wires for direct connection to control systems. Constructed with PUR (polyurethane) jacket and rated for UL/CSA applications with drag chain capability, it provides reliable signal transmission in dynamic industrial automation environments requiring superior flexibility and durability.

Key Features

• M8 female straight connector with A-coding (3-pole configuration)
• 5-meter cable length with open-ended wire termination
• PUR jacket with 3x0.25mm² conductors for superior flexibility and chemical resistance
• UL/CSA certification with drag chain capability for dynamic applications
• 10 million bending cycles in C-track applications at 25°C
• Wide operating temperature range (-25°C to +80°C dynamic)
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Black jacket color for professional appearance

Technical Specifications

• Model: M8 female 0° A-cod. with cable
• Article Number: 7000-08041-6300500
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

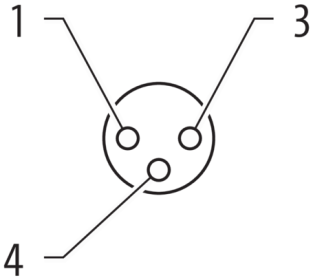

• Pole Configuration: 3-pole
• Cable Length: 5 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

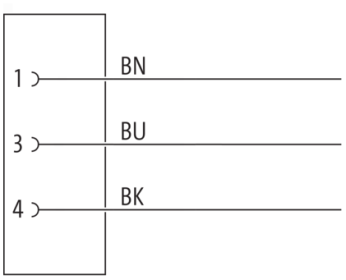

Connection Specifications

• Connector End: M8 female straight connector, A-coded
• Wire End: Open-ended flying leads
• Voltage Rating: 50VAC/60VDC maximum
• Current Rating: 4A maximum per conductor
• Cable Jacket: PUR (Polyurethane) black
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Drag Chain Rating: UL/CSA + drag chain approved
• Electrical Resistance: 79 Ω/km @ 20°C

Applications

• Dynamic industrial sensor and actuator connectivity
• Robotic systems requiring flexible cable movement
• Machine control systems with drag chain requirements
• Process control instrumentation in moving applications
• Industrial automation with cable management systems
• Manufacturing equipment requiring high flex-life cables

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for 10 million bending cycles in C-track
• Temperature Standards: -25°C to +80°C dynamic operation, -40°C to +80°C static
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection

Benefits

• Pre-assembled construction eliminates field termination requirements
• PUR jacket offers superior flexibility and chemical resistance compared to PVC
• 10 million bending cycles ensure long service life in dynamic applications
• Female connector design enables direct sensor connection
• 5-meter length provides optimal balance of reach and manageability
• A-coding ensures proper mating and prevents mis-connection
• UL/CSA certification ensures compliance with North American standards

Physical Specifications

• Operating Temperature (Dynamic): -25°C to +80°C (90°C @ 10,000h)
• Operating Temperature (Static): -40°C to +80°C (90°C @ 10,000h)
• Bending Cycles: 10 million @ 25°C in C-track applications
• Traversing Distance: 10m horizontal in C-track applications
• Cable Construction: PUR jacket, unshielded
• Connector Series: M8 Lite with plastic hexagonal screw

Download existing graphical data for this product:

• Product Specification Sheet
