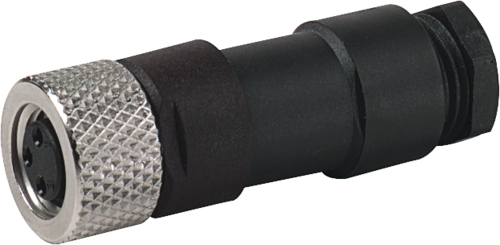

Murr M8 female 0°, field-wireable, 3-pole, 0.25mm²

Product Overview

The Murrelektronik M8 female connector is a field-wireable connector designed for on-site termination using solder pin technology. This straight M8 female connector features A-coding and 3-pole configuration, allowing for permanent field installation with superior electrical connection reliability in industrial automation applications.

Key Features

• M8 female straight connector with A-coding (3-pole configuration)
• Solder pin technology for permanent, high-reliability connections
• Field-wireable design for on-site installation flexibility
• Accepts wire cross-sections up to 0.25mm² (#24 AWG)
• Cable diameter range: 3.5 to 5mm with included gasket
• IP67 protection rating for industrial environments

Technical Specifications

• Article Number: 7000-08481-0000000

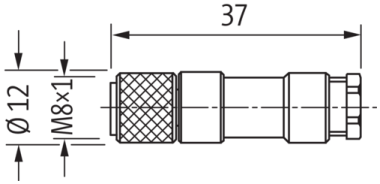

• Connector Type: M8 female, straight (0°)

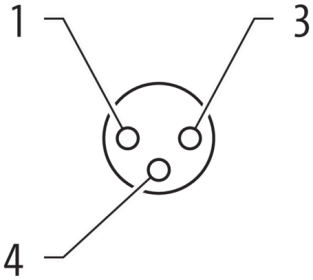

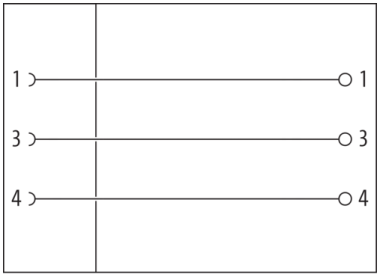

• Pole Configuration: 3-pole, A-coded
• Wire Cross Section: Maximum 0.25mm² (#24 AWG)
• Cable Diameter Range: 3.5 to 5mm
• Voltage Rating: 60V maximum
• Current Rating: 4A maximum per contact
• Protection Rating: IP67

Applications

• Permanent field installation of sensor connections
• Industrial automation systems requiring on-site termination
• Machine control systems with custom cable lengths
• Process control instrumentation

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Protection Standards: IP67 environmental protection
• Electrical Standards: 60V voltage rating with 4A current capacity

Benefits

• Solder pin technology provides superior electrical reliability
• Field-wireable design reduces pre-made cable inventory
• A-coding prevents mis-connection
• Permanent connection eliminates maintenance concerns
• IP67 rating enables use in demanding environments

Download existing graphical data for this product:

• Data Sheet
