Murr M8 female 0°, A-code with cable, LED, 3-pole, black, 5m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for industrial signal applications requiring visual status indication. This 5-meter cable features a straight M8 female connector with A-coding, 3-pole configuration, and integrated LED indicators, terminated with open-ended wires for flexible system integration. Constructed with PVC (polyvinyl chloride) jacket and rated for UL/CSA applications, it provides reliable signal transmission with visual feedback in standard industrial automation and sensor connectivity applications.

Key Features

• M8 female straight connector with A-coding (3-pole configuration)
• Integrated 2× LED indicators (PNP) for visual status feedback
• 5-meter cable length with open-ended wire termination
• PVC jacket with 3x0.25mm² conductors for standard applications
• UL/CSA certification for North American applications
• Die-cast zinc coupling nut for enhanced durability
• Cable sleeves included for enhanced protection
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Silicone-free construction

Technical Specifications

• Model: M8 female 0° A-cod. with cable LED
• Article Number: 7000-08111-6100500
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

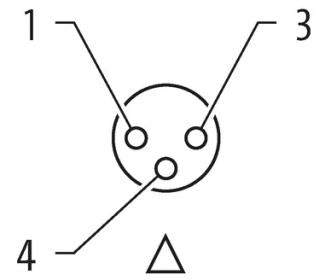

• Pole Configuration: 3-pole
• Cable Length: 5 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

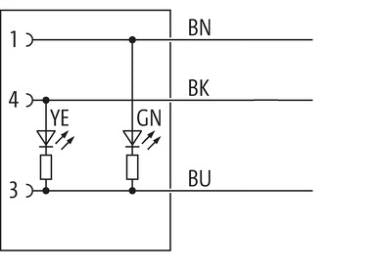

• LED Configuration: 2× LED (PNP)

Connection Specifications

• Connector End: M8 female straight connector, A-coded with LED indicators
• Wire End: Open-ended flying leads with cable sleeves
• Cable Jacket: PVC (Polyvinyl Chloride) black
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Coupling Nut: Die-cast zinc construction
• Connector Series: M8 Lite with plastic hexagonal screw
• Protection Rating: IP65/IP66K/IP67
• Voltage Rating: 60VDC maximum
• Current Rating: 4A maximum per contact
• LED Type: PNP switching with visual status indication

Applications

• Industrial sensor connectivity requiring visual status feedback
• Machine control systems with diagnostic requirements
• Process control instrumentation with status indication needs
• Factory automation requiring visual connection verification
• Standard industrial environments without dynamic movement requirements
• Quality control and monitoring applications

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for standard automation applications
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Material Standards: Silicone-free construction
• LED Standards: PNP switching compatible with standard industrial controls

Benefits

• Pre-assembled construction eliminates field termination requirements
• Integrated LED indicators provide immediate visual status feedback
• A-coding ensures proper mating and prevents mis-connection
• Open-ended wires allow direct connection to control systems
• UL/CSA certification ensures compliance with North American standards
• 5-meter length provides optimal balance of flexibility and cost-effectiveness
• PVC jacket offers good resistance to chemicals and oils for standard applications
• Die-cast zinc coupling nut provides mechanical strength and durability
• Visual diagnostics reduce troubleshooting time and improve system monitoring

Download existing graphical data for this product:

• Data Sheet
