Murr M23 female 0° with cable, straight, 19-pole, 5m

Product Overview

The Murrelektronik M23 female straight connector provides high-density connectivity for advanced industrial automation applications requiring multiple signal channels. This 19-pole connector features a specialized conductor configuration with a 5-meter PUR cable and open-ended wires, delivering robust connectivity optimized for 8-way distribution box applications with superior chemical resistance and drag chain compatibility.

Key Features

• M23 female straight connector with 19-pole configuration
• Specialized conductor arrangement: 16x0.34mm² + 3x0.75mm² for versatile signal transmission
• 5-meter PUR cable with drag chain compatibility
• Gray cable jacket for professional appearance
• Optimized for 8-way distribution box applications
• Superior chemical and oil resistance
• All 19 poles utilized for maximum connectivity

Technical Specifications

• Article Number: 7000-23251-3980500

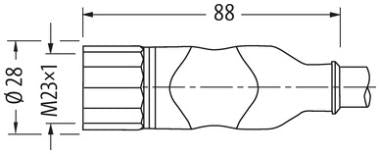

• Connector Type: M23 female straight (0°), 19-pole
• Cable Length: 5 meters (16.4 feet)
• Conductor Specification: PUR 16x0.34mm² + 3x0.75mm² configuration
• Voltage Rating: 125V AC, 7.5A per contact
• Cable Type: PUR (Polyurethane), gray with drag chain compatibility
• Protection Rating: IP67 when properly installed
• Pole Configuration: 19-pole used for comprehensive connectivity

Applications

• 8-way distribution box connections requiring high pin count connectivity
• Industrial automation systems with M23 interface requirements
• Machine control applications requiring multiple signal and power channels
• Process control equipment with comprehensive input/output requirements
• Factory automation networks requiring high-density connectivity
• Distribution systems requiring mixed signal and power transmission

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP67 rating for harsh industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• 19-pole configuration provides comprehensive connectivity for complex applications
• Mixed conductor sizes accommodate both signal and power requirements
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications
• Optimized for distribution box applications with high pin count requirements
• Gray cable color enhances professional appearance and cable identification
