Murr M12 Screw terminal, female 0°, self wireable, 5-pole

Product Overview

M12 female field-wireable connector (SKU: 7030-12931-0000000) designed for custom cable assembly applications in industrial automation systems. This AIDA conform A-coded connector features M12 female straight design with screw terminal connections, allowing field technicians to wire their own cables on-site for flexible sensor and actuator installations.

Key Features

• M12 female straight (0°) A-coded connector for standardized connections
• AIDA conform design meeting construction industry standards
• Field-wireable design with screw terminal connections for custom assembly
• 5-pole configuration for comprehensive signal transmission
• Wire gauge compatibility from 0.14 - 1.5mm² for flexible installation
• Cable sealing range from 2.5-8mm diameter accommodating various cables
• Plastic housing with good resistance against chemicals and oils
• Tool-free installation with screw terminal design

Technical Specifications

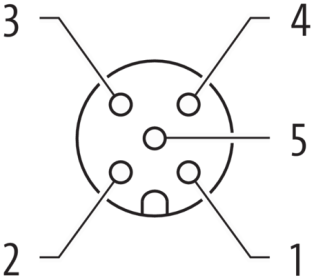

• Connector: M12 female straight (0°) A-coded, 5-pole

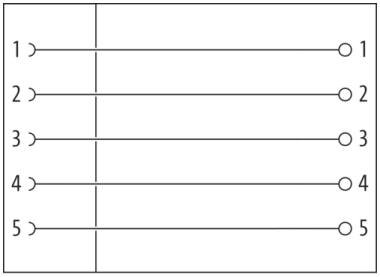

• Termination Type: Screw terminals for field wiring
• Wire Gauge Range: 0.14 - 1.5mm² stranded copper
• Cable Sealing Range: 2.5 - 8mm diameter
• Housing Material: PA (Polyamide) plastic construction
• Operating Temperature: -30°C to +85°C
• Pollution Degree: 3 (industrial environments)
• Protection Rating: IP67 (when properly assembled and mated)

Applications

• Custom cable assembly for sensor and actuator connections
• Field installation where pre-made cables are not suitable
• AIDA compliant construction industry applications
• Retrofit applications requiring specific cable lengths
• Industrial automation systems with custom wiring requirements
• Control system installations requiring field-assembled connections

Compliance & Standards

• AIDA conform design for construction industry compliance
• A-coding compliant with IEC 61076-2-101 standards
• Chemical and oil resistant construction
• Industrial grade materials for demanding environments
• Field-assemblable design for installation flexibility
• Pollution degree 3 rating for industrial environments

Download existing graphical data for this product:

Product Datasheet
