Murr M12 Power male 0°, L-code with cable, 5-pole, 20m

Product Overview

M12 Power male connector with open-ended cable (SKU: 7000-P4201-P042000) designed for high-current power applications in industrial automation systems. This L-coded 5-pole straight connector features 20 meters of robust PUR cable with 5×1.5mm² conductors and cable sleeves for reliable power distribution to motors, actuators, and high-power devices in demanding industrial environments.

Key Features

• M12 Power male straight (0°) L-coded connector with SW17 hex
• 20-meter PUR cable with open-ended wires for field termination
• 5-pole configuration with 5 × 1.5mm² high-current conductors
• Black PUR jacket with excellent chemical and oil resistance
• UL/CSA certified construction with IP67/IP68/IP69K protection
• Drag chain compatible with 5 million cycle rating
• Cable sleeves included for professional wire management
• Gold-plated contacts for superior conductivity and corrosion resistance

Technical Specifications

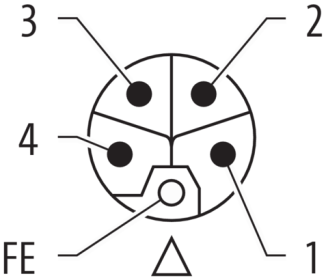

• Connector: M12 Power male straight (0°) L-coded, 5-pole, SW17
• Cable Length: 20 meters
• Wire Configuration: 5 × 1.5mm² stranded copper (Class 6)
• Cable Type: PUR jacket, black, 8.2mm outer diameter
• Operating Voltage: Up to 1000V AC, 63V DC max

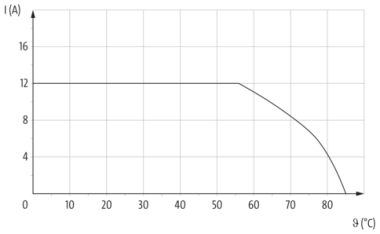

• Current Rating: 12A max per contact, 13.5A min wire capacity
• Operating Temperature: -30°C to +85°C (connector), -50°C to +80°C (cable)
• Protection Rating: IP65/IP67/IP69K (when properly mated)
• Tightening Torque: 0.6 Nm

Applications

• Extended power connections for large automation systems
• Long-distance motor and servo drive power supply
• Industrial automation equipment requiring extended cable runs
• Robotic systems with extensive reach requirements
• Heavy-duty machinery power distribution across wide areas
• Process control equipment with remote power connections
• Custom power installations requiring specific 20m cable lengths
• Dynamic applications with extended travel distances

Compliance & Standards

• IEC 61076-2-111 standard compliant L-coding
• UL/CSA certified (UL 2237) construction
• Drag chain rated: 5 million cycles with extended travel capability
• Flame resistant: UL 1581, CSA FT2, IEC 60332 standards
• Chemical resistant: Oil, gasoline, hydrolysis resistant
• RoHS compliant: Lead-free, cadmium-free, halogen-free materials
• Pollution Degree 3 rated for industrial environments
